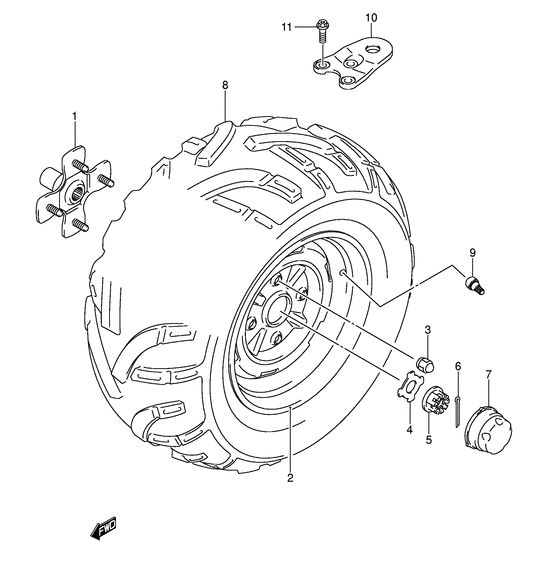

Left rear wheel Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-31G00-000
Hub, rear wheel lh
Hub, rear wheel lh; |
64110-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
64110-31G10-000 HUB,RR WHEELHub, rear wheel lh; |
64110-31G10-000 |
US $255.22 |
||
|
2
|
2
65310-31G00-000 RIM,RR WHEEL(12X7.5AT)Rim, rear wheel (12x7.5at); |
65310-31G00-000 |
from US $506.88 |
||
|
3
|
3
09159-10045-000 NUT |
09159-10045-000 |
from US $9.62 |
||
|
4
|
4
64723-09F00-000 WASHER,HUB |
64723-09F00-000 |
from US $6.51 |
||
|
5
|
5
09141-18010-000 NUTNut, hub; |
09141-18010-000 |
from US $13.63 |
||
|
6
|
6
04111-40408-000
Pin, cotter
Cotter pin; |
04111-40408-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-4040A-000 PINCotter pin; |
04111-4040A-000 |
from US $0.80 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
65110-31G00-000
Tire, rear (at25x10-12)
Tire, rear (at25x10-12); |
65110-31G00-000 |
— | ||
| replacement | |||||
|
8
|
8
65110-31G20-000 TIRE,RRTire, rear (at25x10-12); |
65110-31G20-000 |
from US $275.29 |
||
|
9
|
9
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
|
10
|
10
95211-31G00-000 PLATE,TRAILER TOW |
95211-31G00-000 |
from US $44.03 |
||
|
11
|
11
09103-10366-000 BOLT(10X30) |
09103-10366-000 |
from US $2.28 |
||
