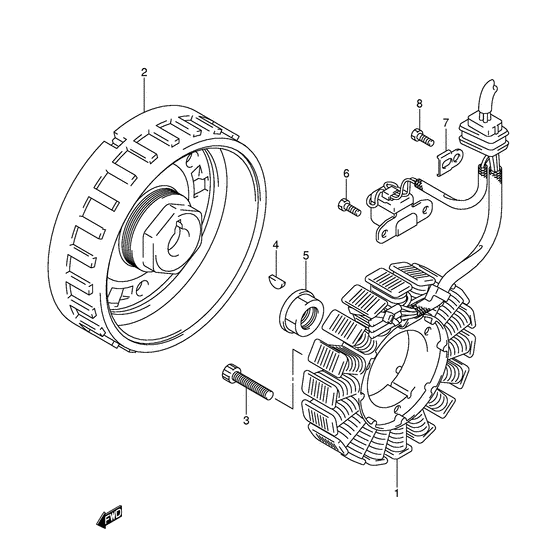

Magneto Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-31G00-000
Stator assy, magneto
|
32101-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-31G02-000 STATOR ASSY |
32101-31G02-000 |
US $845.30 |
||
|
2
|
2
32102-31G00-000 ROTOR ASSY |
32102-31G00-000 |
from US $619.20 |
||
|
3
|
3
07130-06303-000
Bolt
Bolt, magneto stator; |
07130-06303-000 |
— | ||
| replacement | |||||
|
3
|
3
07130-0630B-000 BoltBolt, magneto stator Bolt, magneto stator; |
07130-0630B-000 |
from US $3.20 |
||
|
4
|
4
08341-31059-000 KEYKey Key, magneto rotor; |
08341-31059-000 |
from US $1.53 |
||
|
5
|
5
31792-18A00-000 NUT,MAGNETO ROTORNut, magneto rotor; |
31792-18A00-000 |
from US $5.78 |
||
|
6
|
6
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt, sensor (5x10); |
09100-05019-000 |
from US $0.91 |
||
|
7
|
7
31497-45000-000 CLAMP,GENERATOR LEAD WIREClamp, magneto no.1 Clamp, magneto lead; |
31497-45000-000 |
from US $0.92 |
||
|
8
|
8
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt, clamp no.1 (5x10); |
09100-05019-000 |
from US $0.91 |
||
