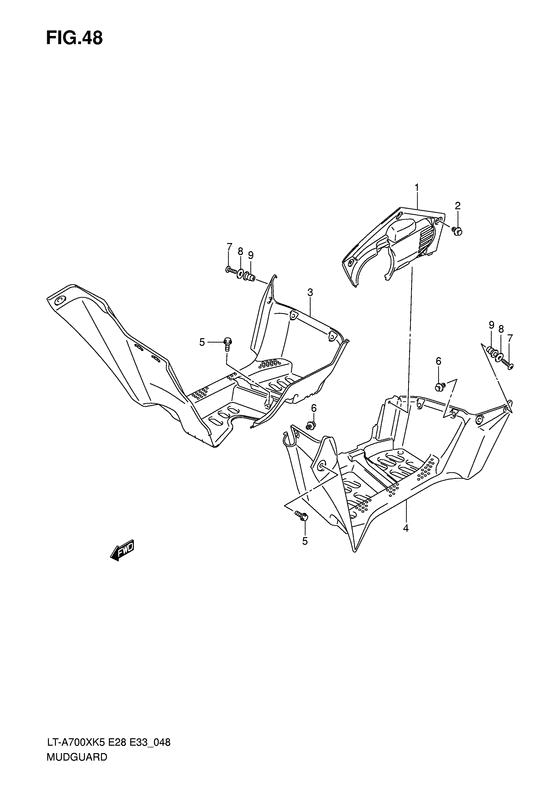

Mudguard Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63342-31G00-291
Lid (black)
Lid (black); |
63342-31G00-291 |
— | ||
| replacement | |||||
|
1
|
1
63342-31G02-291 LID,FOOTREST GUARDLid (black); |
63342-31G02-291 |
US $137.79 |
||
|
2
|
2
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
3
|
3
63331-31G00-291 Mudguard, front rh (black)Mudguard, front rh (black); |
63331-31G00-291 |
US $94.83 |
||
| replacements | |||||
|
3
|
3
02142-0520B-000 SCREWScrew, rear Mudguard, front rh (black); |
02142-0520B-000 |
from US $0.76 |
||
|
3
|
3
09159-05019-000 NUTMudguard, front rh (black); |
09159-05019-000 |
from US $2.28 |
||
|
3
|
3
09160-05046-000 WASHER(5.5X20X1.4)Mudguard, front rh (black); |
09160-05046-000 |
from US $3.20 |
||
|
3
|
3
63331-31G01-291
MUDGUARD,FOOTREST,R
Mudguard, front rh (black); |
63331-31G01-291 |
— | ||
|
3
|
3
63331-31G02-291
MUDGUARD,FRONT
Mudguard, front rh (black); |
63331-31G02-291 |
— | ||
|
4
|
4
63341-31G00-291 Mudguard, front lh (black)Mudguard, front lh (black); |
63341-31G00-291 |
US $49.11 |
||
| replacements | |||||
|
4
|
4
02142-0520B-000 SCREWScrew, rear Mudguard, front lh (black); |
02142-0520B-000 |
from US $0.76 |
||
|
4
|
4
09159-05019-000 NUTMudguard, front lh (black); |
09159-05019-000 |
from US $2.28 |
||
|
4
|
4
09160-05046-000 WASHER(5.5X20X1.4)Mudguard, front lh (black); |
09160-05046-000 |
from US $3.20 |
||
|
4
|
4
63341-31G01-291
MUDGUARD,FOOTREST,L
Mudguard, front lh (black); |
63341-31G01-291 |
— | ||
|
4
|
4
63341-31G02-291
Mudguard,footrest,l
Mudguard, front lh (black); |
63341-31G02-291 |
— | ||
|
4
|
4
63341-31G03-291 Mudguard,footrest,lMudguard, front lh (black); |
63341-31G03-291 |
US $213.86 |
||
|
5
|
5
09111-06088-000 BOLT(6X13.5)Bolt, guard; |
09111-06088-000 |
from US $1.18 |
||
|
6
|
6
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.91 |
||
|
7
|
7
02142-05203-000
Screw
|
02142-05203-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
8
|
8
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
9
|
9
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
