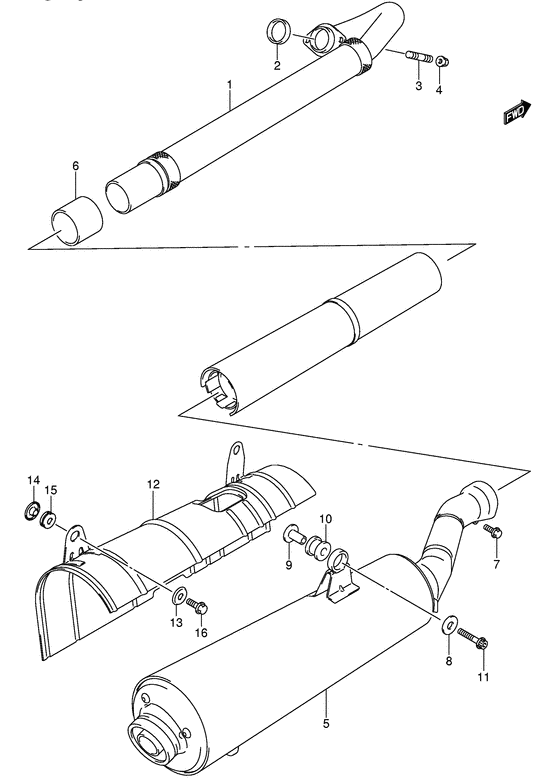

Muffler Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14100-31G00-000 Pipe assy, exh |
14100-31G00-000 |
US $266.82 |
||
| replacement | |||||
|
1
|
1
14100-31G01-000 PIPE ASSY,EXHAUST |
14100-31G01-000 |
from US $253.92 |
||
|
2
|
2
14181-29E02-000 GASKET,EXHAUST PIPEGasket, exh pipe Gasket, exh pipe; |
14181-29E02-000 |
from US $6.08 |
||
|
3
|
3
01421-08203-000
Bolt, exhaust pipe stud
Bolt, stud; |
01421-08203-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0820A-000 BOLT,STUDBolt, stud; |
01421-0820A-000 |
from US $3.03 |
||
|
4
|
4
08319-31083-000
Nut
|
08319-31083-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
5
|
5
14310-31G00-000 Body, muffler |
14310-31G00-000 |
US $446.06 |
||
| replacement | |||||
|
5
|
5
14310-31G02-000 BODY,MUFFLER |
14310-31G02-000 |
from US $714.56 |
||
|
6
|
6
14771-31G00-000
Connector
Connector, muf jt; |
14771-31G00-000 |
— | ||
| replacement | |||||
|
6
|
6
14771-45G00-000 CONNECTOR,MUFFLERConnector, muf jt Connector, muf jt; |
14771-45G00-000 |
from US $13.98 |
||
|
7
|
7
07120-08353-000
Bolt
|
07120-08353-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-0835B-000 Bolt |
07120-0835B-000 |
from US $1.37 |
||
|
8
|
8
09160-08503-000 WASHER(8.5X30X2.3)Washer, muffler support Washer, 8.5x30x2.3; |
09160-08503-000 |
from US $1.60 |
||
|
9
|
9
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer, 8.6x12x24.2; |
09180-08152-000 |
from US $2.74 |
||
|
10
|
10
09320-12071-000 CUSHIONCushion, muffler support Cushion, muf sprt; |
09320-12071-000 |
from US $12.34 |
||
|
11
|
11
07120-08403-000
Bolt
|
07120-08403-000 |
— | ||
| replacement | |||||
|
11
|
11
07120-0840A-000 Bolt |
07120-0840A-000 |
from US $1.44 |
||
|
12
|
12
14880-31G00-000 COVER,MUFFLER |
14880-31G00-000 |
from US $103.78 |
||
|
13
|
13
14184-07G00-000 WASHER,EXHAUST PIPE COVERWasher, muf cover Washer, muf cover; |
14184-07G00-000 |
from US $0.99 |
||
|
14
|
14
14185-07G00-000 SPACER,EXHAUST PIPE COVERSpacer, muf cover Spacer, muf cover; |
14185-07G00-000 |
from US $2.29 |
||
|
15
|
15
09320-08069-000 CUSHION |
09320-08069-000 |
from US $11.29 |
||
|
16
|
16
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BoltBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BoltBolt; |
01550-0616A-000 |
from US $0.76 |
||
