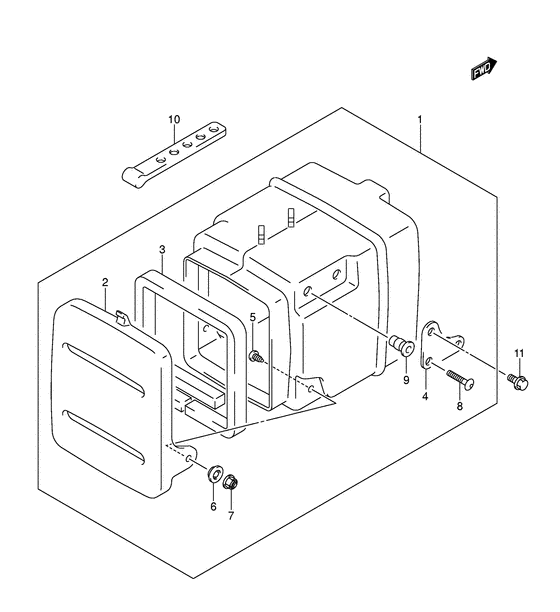

Rear box Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93100-31G00-000
BOX ASSY,RR
|
93100-31G00-000 |
— | ||
|
2
|
2
93112-31G00-000 LID,RR BOX |
93112-31G00-000 |
from US $21.90 |
||
|
3
|
3
93114-31G00-000 CUSHION,RR BOX |
93114-31G00-000 |
US $32.64 |
||
| replacement | |||||
|
3
|
3
93114-31GA1-000 CUSHION,REAR BOX |
93114-31GA1-000 |
from US $12.62 |
||
|
4
|
4
93113-31G00-000 BRACKET,RR BOX |
93113-31G00-000 |
from US $5.15 |
||
|
5
|
5
02142-06163-000
Screw
Screw, hinge; |
02142-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0616A-000 SCREWScrew, hinge; |
02142-0616A-000 |
from US $0.76 |
||
|
6
|
6
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
| replacement | |||||
|
6
|
6
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
7
|
7
08319-31063-000
Nut
|
08319-31063-000 |
— | ||
| replacement | |||||
|
7
|
7
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
8
|
8
02142-05203-000
Screw
Screw, box; |
02142-05203-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0520B-000 SCREWScrew, rear Screw, box; |
02142-0520B-000 |
from US $0.76 |
||
|
9
|
9
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
10
|
10
93191-09F11-000 BAND,RR BOX |
93191-09F11-000 |
from US $6.55 |
||
|
11
|
11
01560-06103-000
Bolt
|
01560-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
01560-0610B-000 Bolt |
01560-0610B-000 |
US $14.40 |
||
