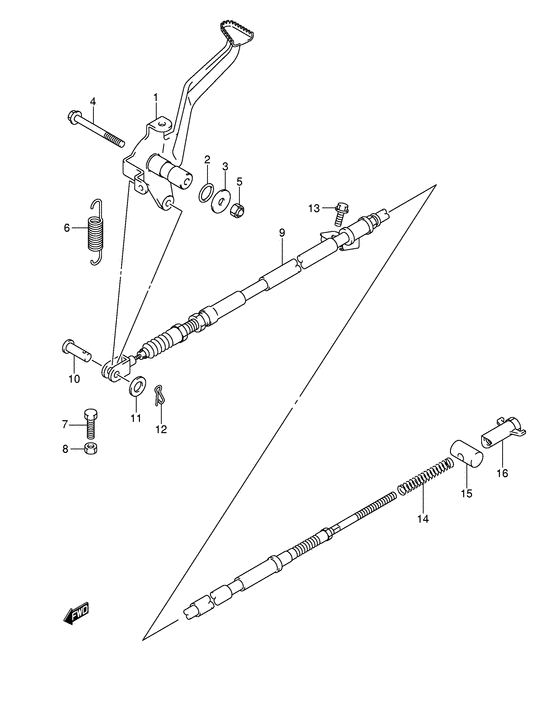

Rear brake Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-31G00-000 PEDAL,BRAKE |
43110-31G00-000 |
from US $58.51 |
||
|
2
|
2
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) O ring; |
09280-14011-000 |
from US $2.13 |
||
|
3
|
3
09160-06138-000 WASHER(6.5X22X2.3)Washer (6.5x22x2.3) |
09160-06138-000 |
from US $3.03 |
||
|
4
|
4
01550-06653-000
Bolt
|
01550-06653-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0665A-000 Bolt |
01550-0665A-000 |
from US $5.07 |
||
|
5
|
5
08319-21063-000
Nut
|
08319-21063-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
6
|
6
09443-12019-000 SPRINGSpring, return; |
09443-12019-000 |
from US $3.50 |
||
|
7
|
7
01500-06203-000
Bolt
Bolt, adjuster; |
01500-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0620A-000 BoltBolt, adjuster; |
01500-0620A-000 |
from US $0.76 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
58510-31G00-000 CABLE,RR BRAKE |
58510-31G00-000 |
US $113.88 |
||
|
10
|
10
09200-05001-000 PIN(L:17.5)Pin, front; |
09200-05001-000 |
from US $1.22 |
||
|
11
|
11
08322-01063-000
Washer
Washer; |
08322-01063-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0106B-000 WASHERWasher; |
08322-0106B-000 |
from US $0.76 |
||
|
12
|
12
09385-06012-000 CLIPCotter pin; |
09385-06012-000 |
from US $1.22 |
||
|
13
|
13
01550-06163-000
Bolt
Bolt, cable; |
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 BoltBolt, cable; |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 BoltBolt, cable; |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
09440-08042-000 SPRING |
09440-08042-000 |
from US $2.27 |
||
|
15
|
15
09209-13006-000 PINPin, adjuster Pin; |
09209-13006-000 |
from US $1.92 |
||
|
16
|
16
09150-06015-000 NUT |
09150-06015-000 |
US $5.70 |
||
