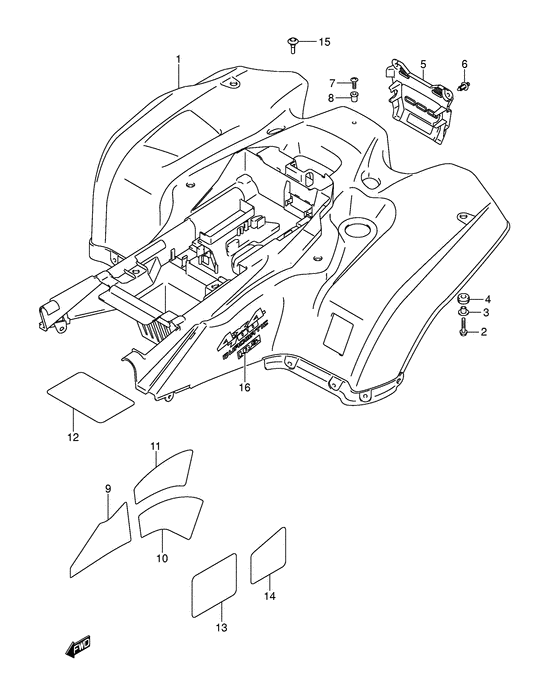

Rear fender Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-31G00-YT9
Fender, rear (red)
Fender, rear (red); |
63111-31G00-YT9 |
— | ||
| replacements | |||||
|
1
|
1
63111-31G03-YT9 FENDER,REAR (RED)Fender, rear (red); |
63111-31G03-YT9 |
US $625.14 |
||
|
1
|
1
63111-31G01-YT9
FENDER,RR
Fender, rear (red); |
63111-31G01-YT9 |
— | ||
|
1
|
1
63111-31G00-YT8
FENDER,RR
Fender, rear (green); |
63111-31G00-YT8 |
— | ||
|
1
|
1
63111-31G00-YU1
Fender, rear (yellow)
Fender, rear (yellow); |
63111-31G00-YU1 |
— | ||
| replacement | |||||
|
1
|
1
63111-31G03-YU1 FENDER, REARFender, rear (yellow); |
63111-31G03-YU1 |
US $467.67 |
||
|
2
|
2
01550-06303-000
Bolt (6x30)
Bolt, side; |
01550-06303-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0630A-000 BoltBolt, side; |
01550-0630A-000 |
from US $1.12 |
||
|
3
|
3
09169-06074-000 WASHERWasher |
09169-06074-000 |
from US $2.74 |
||
|
4
|
4
09320-11019-000
Cushion
|
09320-11019-000 |
— | ||
| replacement | |||||
|
4
|
4
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
5
|
5
63251-31G00-000 COVER,RR |
63251-31G00-000 |
US $29.07 |
||
| replacement | |||||
|
5
|
5
63251-31G01-000 Cover,rr |
63251-31G01-000 |
US $22.98 |
||
|
6
|
6
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
7
|
7
02142-05203-000
Screw
Screw, rear; |
02142-05203-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0520B-000 SCREWScrew, rear Screw, rear; |
02142-0520B-000 |
from US $0.76 |
||
|
8
|
8
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
9
|
9
63122-31G00-000 Shield, rear fender |
63122-31G00-000 |
US $29.94 |
||
| replacements | |||||
|
9
|
9
63122-31G20-000 SHIELD,REAR FENDER |
63122-31G20-000 |
from US $30.89 |
||
|
9
|
9
63122-31G10-000 SHIELD,RR FENDER |
63122-31G10-000 |
from US $21.46 |
||
|
10
|
10
63123-31G00-000 Shield, rear fender |
63123-31G00-000 |
US $32.15 |
||
| replacements | |||||
|
10
|
10
63123-31G20-000 SHIELD,REAR FENDER |
63123-31G20-000 |
from US $26.93 |
||
|
10
|
10
63123-31G10-000 SHIELD,RR FENDER |
63123-31G10-000 |
from US $18.73 |
||
|
11
|
11
63124-31G00-000 Shield, rear fender |
63124-31G00-000 |
US $32.15 |
||
| replacements | |||||
|
11
|
11
63124-31G20-000 SHIELD,REAR FENDER |
63124-31G20-000 |
from US $19.87 |
||
|
11
|
11
63124-31G10-000 SHIELD,RR FENDER |
63124-31G10-000 |
from US $13.81 |
||
|
12
|
12
63128-31G00-000
Shield, rear fender
|
63128-31G00-000 |
— | ||
| replacements | |||||
|
12
|
12
63128-31G20-000
SHIELD,REAR FENDER
|
63128-31G20-000 |
— | ||
|
12
|
12
63128-31G10-000
SHIELD,RR FENDER
|
63128-31G10-000 |
— | ||
|
13
|
13
63126-31G00-000 Shield, rear fender |
63126-31G00-000 |
US $7.81 |
||
| replacements | |||||
|
13
|
13
63126-31G20-000 SHIELD,REAR FENDER |
63126-31G20-000 |
from US $14.89 |
||
|
13
|
13
63126-31G10-000 SHIELD,RR FENDER |
63126-31G10-000 |
from US $10.36 |
||
|
14
|
14
63127-31G00-000 Shield, rear fender |
63127-31G00-000 |
US $14.70 |
||
| replacements | |||||
|
14
|
14
63127-31G20-000 SHIELD,REAR FENDER |
63127-31G20-000 |
from US $14.89 |
||
|
14
|
14
63127-31G10-000 SHIELD,RR FENDER |
63127-31G10-000 |
from US $10.36 |
||
|
15
|
15
93115-03G00-000 PLUG,RR BOXPlug Plug; |
93115-03G00-000 |
US $6 |
||
|
16
|
16
68171-31G10-AWU EMBLEM,RR FENDER |
68171-31G10-AWU |
from US $22.82 |
||
|
16
|
16
68171-31G00-20H
EMBLEM,SUZUKI
Emblem, rear (silver); |
68171-31G00-20H |
— | ||
| replacement | |||||
|
16
|
16
68171-31G01-20H Emblem,"suzuki"Emblem, rear (silver); |
68171-31G01-20H |
from US $7.95 |
||
