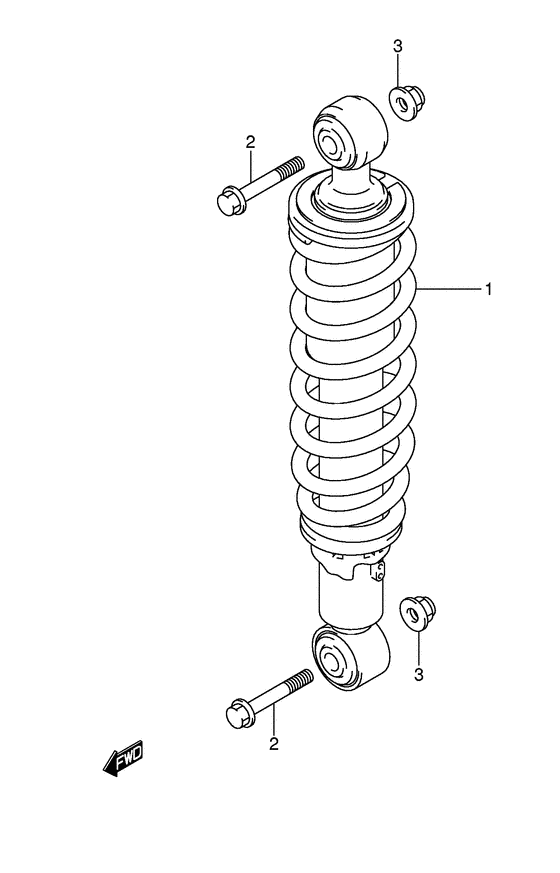

Rear shock absorber Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-31G00-YU8 ABSORBER ASSY,RR SHOCKAbsorber assy, rear shock (gray) Absorber assy, rear shock (gray); |
62100-31G00-YU8 |
from US $314.64 |
||
|
2
|
2
09103-10385-000 BOLT(10X48)Bolt, rr shock abs; |
09103-10385-000 |
from US $9.45 |
||
|
3
|
3
09159-10058-000
Nut
Nut, rr shock abs; |
09159-10058-000 |
— | ||
| replacement | |||||
|
3
|
3
09159-10115-000 NUTNut, rr shock abs; |
09159-10115-000 |
from US $2.58 |
||
