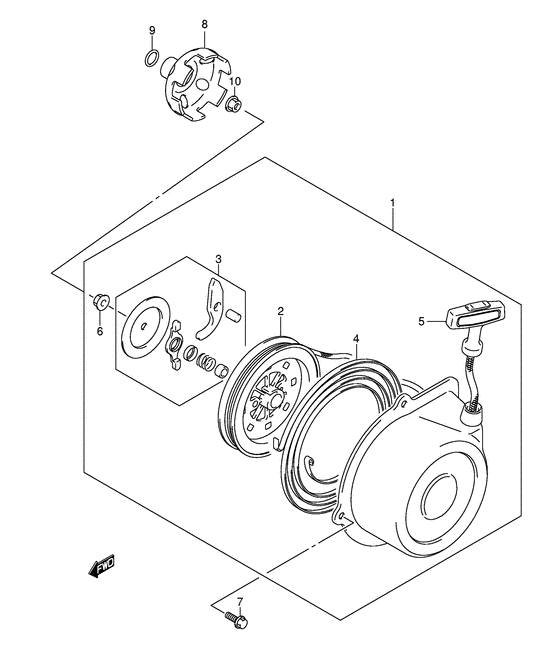

Recoil starter Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-24503-000 STARTER ASSY,RECOIL |
18100-24503-000 |
US $325.60 |
||
|
2
|
2
18120-24500-000 REEL,STARTER |
18120-24500-000 |
US $61.37 |
||
|
3
|
3
18130-24400-000 Ratchet set |
18130-24400-000 |
from US $24.72 |
||
|
4
|
4
18142-24400-000 SPRING,RECOILSpring, spiral; |
18142-24400-000 |
from US $24.50 |
||
|
5
|
5
18200-24501-000 GRIP ASSY,STARTER 6.0X1870Rope assy |
18200-24501-000 |
US $51.46 |
||
|
6
|
6
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
09103-06236-000 BOLT(6X12)Bolt, 6x12; |
09103-06236-000 |
from US $4.25 |
||
|
8
|
8
18410-09F02-000 CUP,STARTER |
18410-09F02-000 |
US $88.43 |
||
|
9
|
9
09280-12009-000 O RING(D:1.9,ID:12.6)O-ring (d:1.9,id:12.6); |
09280-12009-000 |
from US $1.98 |
||
|
10
|
10
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
