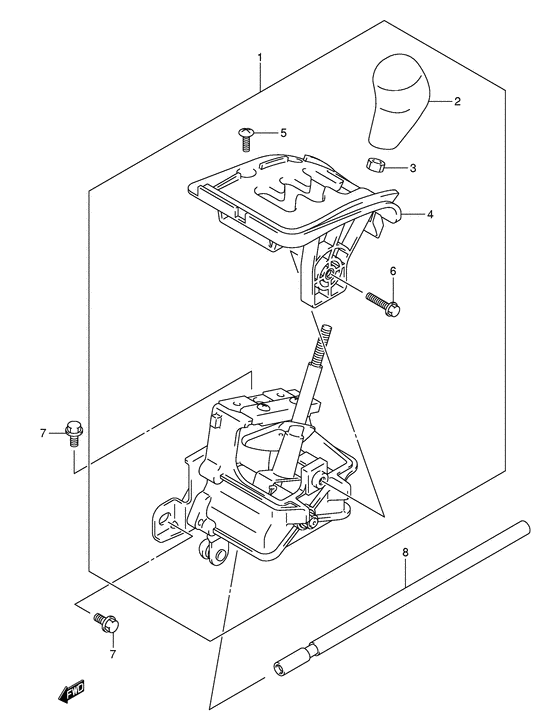

Shift lever Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57800-31G00-000 LEVER SET,TRANSMISSION |
57800-31G00-000 |
from US $418.88 |
||
|
2
|
2
57830-31G00-000 KNOB,T/M LEVER |
57830-31G00-000 |
from US $34.04 |
||
|
3
|
3
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
3
|
3
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
57940-31G00-000 COVER ASSY,T/M LEVER |
57940-31G00-000 |
from US $64.03 |
||
|
5
|
5
09139-06083-000 SCREW(6X16)Screw, front center Screw, upper; |
09139-06083-000 |
from US $1.82 |
||
|
6
|
6
02162-06253-000
Bolt
Bolt, side; |
02162-06253-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0625A-000 SCREWBolt, side; |
02162-0625A-000 |
from US $0.76 |
||
|
7
|
7
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
57911-31G00-000
Rod, lever
|
57911-31G00-000 |
— | ||
| replacements | |||||
|
8
|
8
57911-31G10-000 ROD,T/M LEVER |
57911-31G10-000 |
US $52.92 |
||
|
8
|
8
57911-31G20-000 ROD,T/M LEVER |
57911-31G20-000 |
from US $31.65 |
||
