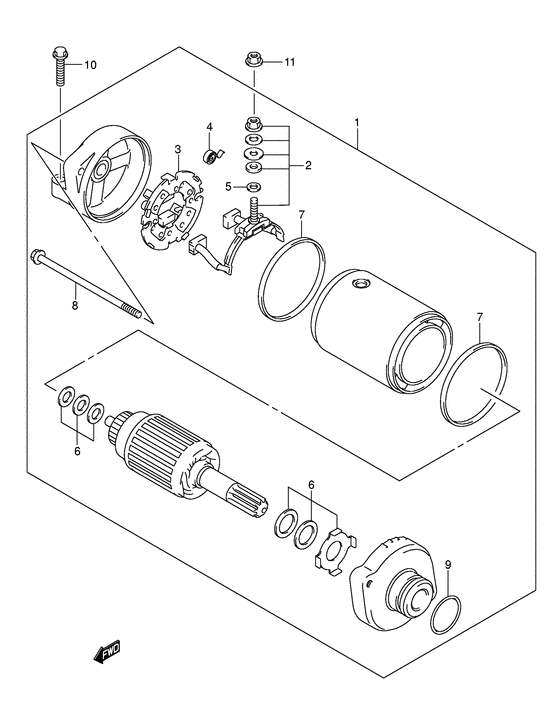

Starting motor Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-31G00-000 MOTOR ASSY,STARTING |
31100-31G00-000 |
from US $559.68 |
||
|
2
|
2
31130-38B00-000 TERMINAL SET,BRUSHTerminal set, brush Terminal set, brush; |
31130-38B00-000 |
from US $38.40 |
||
|
3
|
3
31132-38B00-000 HOLDER SET,BRUSHHolder set, brush |
31132-38B00-000 |
from US $36.48 |
||
|
4
|
4
31135-38B00-000 SPRING,BRUSH |
31135-38B00-000 |
from US $1.92 |
||
|
5
|
5
31143-49040-000 O RINGO ring |
31143-49040-000 |
from US $2.08 |
||
|
6
|
6
31170-19B10-000 WASHER SETWasher set Washer set; |
31170-19B10-000 |
from US $6.15 |
||
|
7
|
7
31264-31300-000 O RINGO ring; |
31264-31300-000 |
from US $4.71 |
||
| replacement | |||||
|
7
|
7
31264-32E00-000 SQUARE RINGO ring O ring; |
31264-32E00-000 |
US $10.01 |
||
|
8
|
8
31280-26D00-000 Bolt |
31280-26D00-000 |
from US $9.64 |
||
|
9
|
9
09280-24003-000 O RING(D:3,ID:24.5)O ring, outer O ring (d:3,id:24.5); |
09280-24003-000 |
from US $1.67 |
||
|
10
|
10
01547-06253-000
Bolt
Bolt, starting motor; |
01547-06253-000 |
— | ||
| replacement | |||||
|
10
|
10
01547-0625B-000 BoltBolt, starting motor; |
01547-0625B-000 |
from US $0.91 |
||
|
11
|
11
08361-35068-000
Nut
Nut, starting motor; |
08361-35068-000 |
— | ||
| replacement | |||||
|
11
|
11
08361-3506A-000 NUTNut, starting motor; |
08361-3506A-000 |
from US $0.80 |
||
