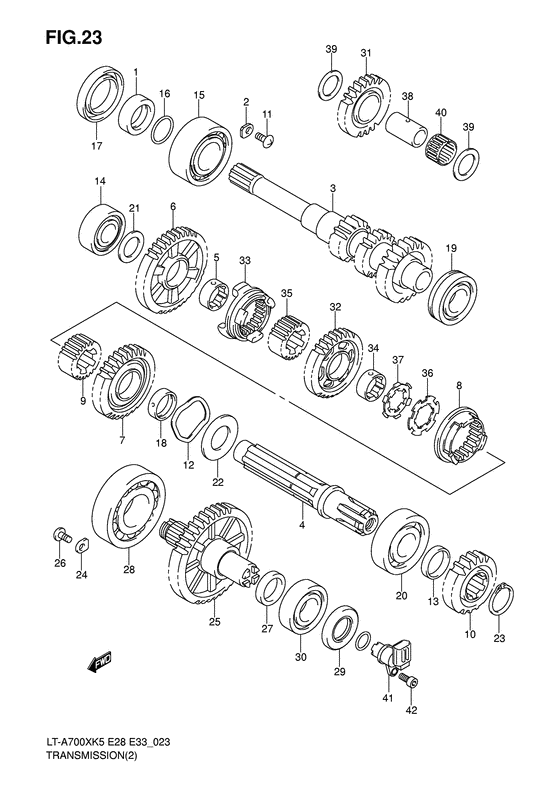

Transmission Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21102-31G00-000 SPACER,PRIMARY SHAFTSpacer, primary shaft |
21102-31G00-000 |
from US $15.49 |
||
|
2
|
2
24741-21A00-000 RETAINERRetainer, drive shaft, r; |
24741-21A00-000 |
from US $1.60 |
||
|
3
|
3
29111-31G00-000
Shaft, drive (nt:25/17/16)
Shaft, drive (nt:25/17/16); |
29111-31G00-000 |
— | ||
| replacement | |||||
|
3
|
3
29111-31G01-000 SHAFT,DRIVEShaft, drive (nt:25/17/16); |
29111-31G01-000 |
from US $165.23 |
||
|
4
|
4
29131-31G00-000 SHAFT,SUB T/M COUNTER |
29131-31G00-000 |
from US $72.13 |
||
|
5
|
5
29215-07G00-000 BUSH,3RD DRIVEN GEARBush, sub t/m driven gr low Bush, sub t/m driven gr low; |
29215-07G00-000 |
US $25.50 |
||
|
6
|
6
29311-31G00-000 GEAR,SUB T/M DRIVEN LOWNt:41 |
29311-31G00-000 |
US $153.43 |
||
|
7
|
7
29321-31G00-000 GEAR,SUB T/M DRIVEN HIGHNt:31 |
29321-31G00-000 |
from US $75.81 |
||
|
8
|
8
29331-31G00-000
Dog, gear shift high
|
29331-31G00-000 |
— | ||
| replacement | |||||
|
8
|
8
29331-31G10-000 DOG,GEAR SHIFT HIGH |
29331-31G10-000 |
from US $40.11 |
||
|
9
|
9
29332-31G00-000 SPACER,REVERSE SELECT SLIDINGSpacer, sub t/m select Spacer, sub t/m select; |
29332-31G00-000 |
from US $20.98 |
||
|
10
|
10
29411-31G00-000 GEAR,SUB T/M DRIVE NO.2Nt:20 |
29411-31G00-000 |
from US $39.74 |
||
|
11
|
11
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw, rtnr drive shaft, r; 6x12 |
09125-06110-000 |
from US $1.52 |
||
|
12
|
12
09164-34001-000 WASHERWasher, sub t/m driven; |
09164-34001-000 |
from US $9.79 |
||
|
13
|
13
09180-25097-000 SPACER(25X30X7)Spacer (25x30x7) Spacer, sub t/m drive gear; 25x30x7 |
09180-25097-000 |
from US $11.71 |
||
|
14
|
14
09262-20139-000 BEARING(20X47X14)Bearing, sub t/m counter, r Bearing, sub t/m counter, r; 20x47x14 |
09262-20139-000 |
from US $19.20 |
||
|
15
|
15
09267-30005-000 BEARING(30X62X23.8)Bearing, drive shaft rh Bearing, drive shaft, r; 30x62x23.8 |
09267-30005-000 |
from US $59.20 |
||
|
16
|
16
09280-25004-000 O RING(D:2.4,ID:24.7)O-ring, primary shaft O-ring, drive shaft; D:2.4,id:24.7 |
09280-25004-000 |
from US $1.52 |
||
|
17
|
17
09283-38025-000 SEAL,OIL(38X56X7)Seal, crankshaft oil upper (38x56x7) Seal, drive shaft space; 38x56x7.0 |
09283-38025-000 |
from US $28.88 |
||
|
18
|
18
24252-19F00-000 BUSHBush, sub t/m driven gr Bush, sub t/m driven gr; |
24252-19F00-000 |
from US $8.35 |
||
|
19
|
19
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) Bearing, drive shaft, l; 25x52x15 |
09262-25003-000 |
from US $13.44 |
||
|
20
|
20
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) Bearing, sub t/m counter, l; |
09262-25073-000 |
from US $14.59 |
||
|
21
|
21
08211-20363-000 WASHERWasher, sub t/m driven, r Washer, sub t/m driven, r; |
08211-20363-000 |
from US $1.04 |
||
|
22
|
22
08211-25463-000 WASHERWasher, sub t/m driven, l; |
08211-25463-000 |
from US $5.17 |
||
|
23
|
23
08331-31256-000
Circlip
Circlip, sub t/m gear; |
08331-31256-000 |
— | ||
| replacement | |||||
|
23
|
23
08331-31259-000 CIRCLIPCirclip, sub t/m gear; |
08331-31259-000 |
from US $1.44 |
||
|
24
|
24
24741-21A00-000 RETAINERRetainer, sec drive shaft; |
24741-21A00-000 |
from US $1.60 |
||
|
25
|
25
29120-31G00-000 SHAFT,SUB T/M OUTPUT |
29120-31G00-000 |
from US $142.42 |
||
|
26
|
26
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw, retainer (6x12); |
09125-06110-000 |
from US $1.52 |
||
|
27
|
27
09180-25083-000 SPACER(25X34X5.5)Spacer (25x34x5.5) Spacer, sub t/m output; 25x34x5.5 |
09180-25083-000 |
from US $16.27 |
||
|
28
|
28
09262-35076-000 BEARING(35X80X21)Bearing, sub t/m output, r; 25x62x17 |
09262-35076-000 |
from US $46 |
||
|
29
|
29
09283-25076-000 SEAL,OIL(25X45X5)Seal, oil Seal, sub t/m output, l; 25x45x5 |
09283-25076-000 |
from US $7.14 |
||
|
30
|
30
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) Bearing, sub t/m output, l; 25x52x15 |
09262-25003-000 |
from US $13.44 |
||
|
31
|
31
24561-31G01-000
Gear, reverse idle (nt:23)
Gear, reverse idle (nt:23); |
24561-31G01-000 |
— | ||
| replacement | |||||
|
31
|
31
24561-31G20-000 GEAR,REVERSE IDLEGear, reverse idle (nt:23); |
24561-31G20-000 |
from US $48.58 |
||
|
32
|
32
24571-31G00-000 GEAR,REVERSE DRIVENGear, reverse driven (nt:32); |
24571-31G00-000 |
from US $56.67 |
||
|
33
|
33
24581-31G00-000 DOG,SUB T/M SELECT SLIDING |
24581-31G00-000 |
US $98.79 |
||
|
34
|
34
29215-07G00-000 BUSH,3RD DRIVEN GEARBush, sub t/m driven gr low Bush, reverse driven gear; |
29215-07G00-000 |
US $25.50 |
||
|
35
|
35
29332-31G00-000 SPACER,REVERSE SELECT SLIDINGSpacer, sub t/m select |
29332-31G00-000 |
from US $20.98 |
||
|
36
|
36
09167-25013-000 WASHER,LOCKLock washer Washer, lock; |
09167-25013-000 |
from US $4.49 |
||
|
37
|
37
09169-25001-000 WASHERLock washer Washer, lock; |
09169-25001-000 |
from US $3.69 |
||
|
38
|
38
24551-31G00-000 SHAFT,REVERSE IDLE GEAR |
24551-31G00-000 |
from US $8.76 |
||
|
39
|
39
09181-20195-000 SHIM(20X30X1)Washer, reverse idle gear; 20x30x1.0 |
09181-20195-000 |
from US $1.82 |
||
|
40
|
40
09263-20060-000 BEARING(20X24X13)Bearing, reverse idle gear Bearing, reverse idle gear; 20x47x14 |
09263-20060-000 |
from US $12.07 |
||
|
41
|
41
34990-31G00-000
Sensor, speed
|
34990-31G00-000 |
— | ||
| replacement | |||||
|
41
|
41
34990-31G01-000 SENSOR,SPEED |
34990-31G01-000 |
US $151.93 |
||
|
42
|
42
07130-06163-000
Bolt, oil hose
Bolt, sensor; |
07130-06163-000 |
— | ||
| replacements | |||||
|
42
|
42
07130-0616B-000 BoltBolt, sensor; |
07130-0616B-000 |
from US $0.91 |
||
|
42
|
42
07130-0616A-000 BoltBolt, piston jet valve Bolt, sensor; |
07130-0616A-000 |
from US $0.96 |
||
