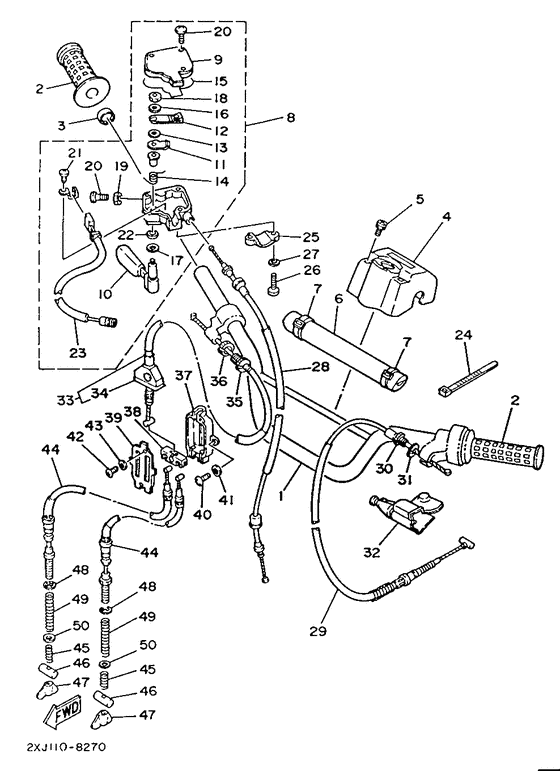

Steering handle & cable Diagram Yamaha BLASTER Blaster
- Model code
- 3JM1
- Engine Capacity
- 195
- Year
- 1989
- Sales region
- USA (999)
- Colour
- White (WW; 0036)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2GU-26111-00-00
Handlebar
|
2GU-26111-00-00 |
— | ||
|
02
|
02
5V6-26241-01-00 Grip |
5V6-26241-01-00 |
from US $14.31 |
||
| replacement | |||||
|
02
|
02
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
03
|
03
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
04
|
04
2GU-26124-00-00 Protector, Handlebar |
2GU-26124-00-00 |
US $12.33 |
||
| replacements | |||||
|
04
|
04
2GU-26124-01-00
Protector, Handlebar
|
2GU-26124-01-00 |
— | ||
|
04
|
04
2GU-26124-02-00 Protector, Handlebar |
2GU-26124-02-00 |
from US $7.42 |
||
|
05
|
05
90159-06093-00 Screw, With Washer |
90159-06093-00 |
from US $2.53 |
||
|
06
|
06
1UY-2622K-00-00
Protector 1
|
1UY-2622K-00-00 |
— | ||
|
07
|
07
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
07
|
07
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
08
|
08
2GU-26250-01-00 Throttle Lever Assy |
2GU-26250-01-00 |
US $273.40 |
||
|
09
|
09
2GU-2628F-00-00 Cap, Gear |
2GU-2628F-00-00 |
US $35.06 |
||
|
10
|
10
2GU-2625G-01-00 Lever, Throttle |
2GU-2625G-01-00 |
from US $44.54 |
||
|
11
|
11
2GU-2625H-00-00 Arm, Throttle |
2GU-2625H-00-00 |
from US $7.08 |
||
|
12
|
12
2GU-2625J-00-00 Arm, Throttle 2 |
2GU-2625J-00-00 |
from US $8.64 |
||
|
13
|
13
2GU-26259-00-00 Collar |
2GU-26259-00-00 |
from US $5.10 |
||
|
14
|
14
2GU-26314-00-00 Spring |
2GU-26314-00-00 |
from US $5.24 |
||
|
15
|
15
2GU-2628G-00-00 Gasket |
2GU-2628G-00-00 |
from US $8.64 |
||
|
16
|
16
2GU-26398-00-00 Washer |
2GU-26398-00-00 |
from US $1.98 |
||
|
17
|
17
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
18
|
18
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
19
|
19
95306-05700-00 Nut |
95306-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
19
|
19
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
20
|
20
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
21
|
21
98902-03006-00 Screw, Bind |
98902-03006-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98907-03006-00 Screw, Bind |
98907-03006-00 |
from US $1.20 |
||
|
22
|
22
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
23
|
23
2GU-82567-00-00
Switch, Throttle
|
2GU-82567-00-00 |
— | ||
|
24
|
24
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
25
|
25
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
26
|
26
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
26
|
26
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
27
|
27
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
28
|
28
2XJ-26311-00-00 Cable, Throttle 1 |
2XJ-26311-00-00 |
from US $27.47 |
||
| replacements | |||||
|
28
|
28
2XJ-26311-01-00 Cable, Throttle 1 |
2XJ-26311-01-00 |
from US $33.38 |
||
|
28
|
28
2XJ-26311-02-00 |
2XJ-26311-02-00 |
from US $32.89 |
||
|
29
|
29
2XJ-26335-00-00 Cable, clutch |
2XJ-26335-00-00 |
from US $29.77 |
||
| replacement | |||||
|
29
|
29
2XJ-26335-01-00 Cable, clutch |
2XJ-26335-01-00 |
from US $35.64 |
||
|
30
|
30
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
30
|
30
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
31
|
31
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
31
|
31
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
32
|
32
1UY-2637A-00-00 Cover, Handle Lever 2 |
1UY-2637A-00-00 |
from US $18.99 |
||
| replacement | |||||
|
32
|
32
1UY-2637A-01-00 Cover, Handle Lever 2 |
1UY-2637A-01-00 |
from US $18.99 |
||
|
33
|
33
2XJ-26373-00-00 Cable, Brake 4 |
2XJ-26373-00-00 |
from US $32.69 |
||
| replacement | |||||
|
33
|
33
4BD-26373-01-00 Cable, Brake 4 |
4BD-26373-01-00 |
from US $34.85 |
||
|
34
|
34
52H-26362-00-00 Boot |
52H-26362-00-00 |
US $7.83 |
||
|
35
|
35
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
35
|
35
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
36
|
36
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
36
|
36
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
37
|
37
52H-26371-00-00 Housing, Brake Link |
52H-26371-00-00 |
from US $30.46 |
||
|
38
|
38
52H-26347-01-00 Joint, Cable |
52H-26347-01-00 |
from US $22.24 |
||
|
39
|
39
52H-2631G-00-00 Plate |
52H-2631G-00-00 |
from US $13.46 |
||
|
40
|
40
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
40
|
40
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
40
|
40
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
41
|
41
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
41
|
41
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
41
|
41
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
42
|
42
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
42
|
42
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
43
|
43
92902-03600-00 Washer |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
44
|
44
2XJ-26361-00-00 Cable, Brake |
2XJ-26361-00-00 |
from US $32.45 |
||
| replacement | |||||
|
44
|
44
2XJ-26361-01-00 Cable, Brake |
2XJ-26361-01-00 |
from US $21.22 |
||
|
45
|
45
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
46
|
46
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
47
|
47
90175-06018-00 Nut, Wing |
90175-06018-00 |
from US $1.98 |
||
| replacements | |||||
|
47
|
47
90175-06019-00 Nut, Wing |
90175-06019-00 |
from US $1.98 |
||
|
47
|
47
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
|
47
|
47
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
48
|
48
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
49
|
49
90501-123A0-00 Spring, Compression |
90501-123A0-00 |
from US $1.98 |
||
|
50
|
50
90209-06265-00 Washer |
90209-06265-00 |
from US $3.54 |
||
