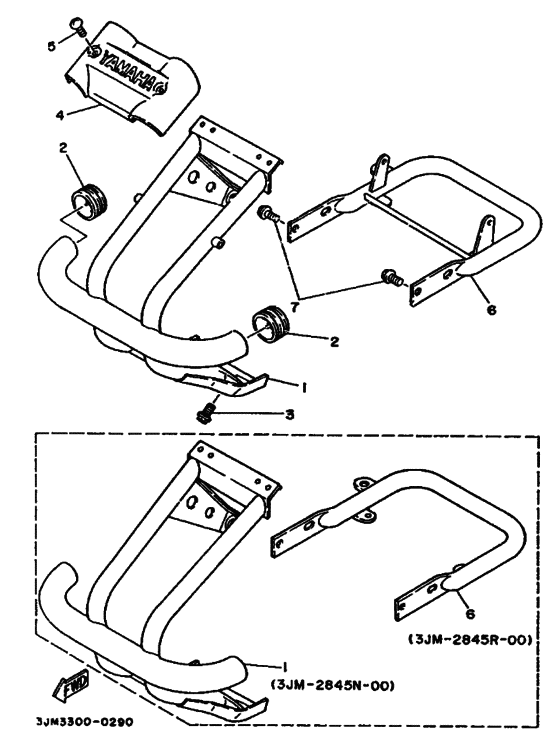

Guard Diagram Yamaha BLASTER Blaster
- Model code
- 3JM3
- Engine Capacity
- 195
- Year
- 1990
- Sales region
- Europe (010)
- Colour
- Solid Fine Silver (SFS; 000A)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JM-2845N-10-00 Bar, Carry FrontUR |
3JM-2845N-10-00 |
US $237.28 |
||
| replacement | |||||
|
1
|
1
3JM-2845N-30-00 Bar, Carry FrontUR |
3JM-2845N-30-00 |
US $227.27 |
||
|
1
|
1
3JM-2845N-00-00 Bar, Carry FrontUR FOR OCEANIA |
3JM-2845N-00-00 |
US $242.89 |
||
| replacement | |||||
|
1
|
1
3JM-2845N-30-00 Bar, Carry FrontUR FOR OCEANIA |
3JM-2845N-30-00 |
US $227.27 |
||
|
2
|
2
2HR-28415-00-00 Damper 1 |
2HR-28415-00-00 |
from US $7.65 |
||
|
3
|
3
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
4
|
4
2XJ-2842M-00-00
Cover 1
|
2XJ-2842M-00-00 |
— | ||
|
5
|
5
90154-05001-00 Screw, Bind |
90154-05001-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
6
|
6
3JM-2845R-10-00 Bar, Carry RearUR |
3JM-2845R-10-00 |
from US $74.81 |
||
|
6
|
6
3JM-2845R-00-00
Bar, Carry Rear
UR FOR OCEANIA |
3JM-2845R-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3JM-2845R-10-00 Bar, Carry RearUR FOR OCEANIA |
3JM-2845R-10-00 |
from US $74.81 |
||
|
7
|
7
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
7
|
7
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
