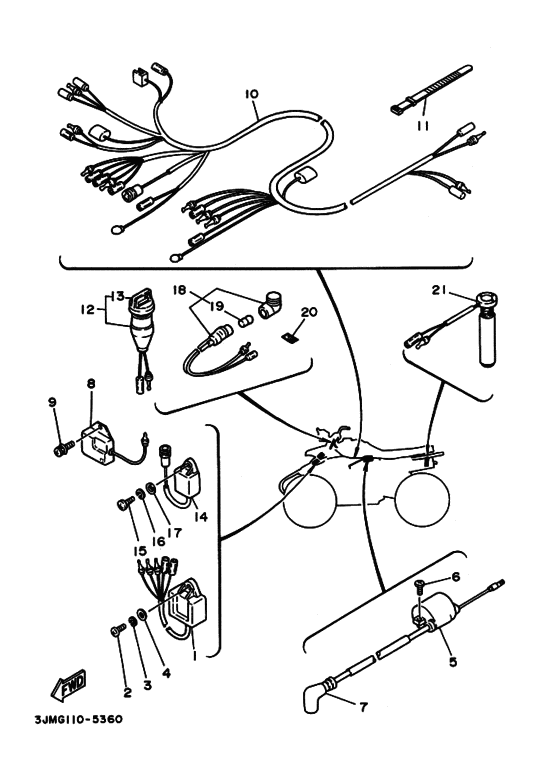

Electrical 1 Diagram Yamaha BLASTER Blaster
- Model code
- 3JMJ
- Engine Capacity
- 195
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- Deep Reddish Purple Solid 1 (DRPS1; 0371)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FL-85540-00-00 Cdi Unit AssyＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
3FL-85540-00-00 |
from US $150.46 |
||
| replacement | |||||
|
1
|
1
3FL-85540-10-00
Cdi Unit Assy
ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
3FL-85540-10-00 |
— | ||
|
2
|
2
985-07060-20-00
Screw, Pan Head
ＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-07060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06020-00 Screw, PanＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98517-06020-00 |
from US $1.25 |
||
|
3
|
3
92907-06100-00 Washer, SpringＷＡＳＨＥＲ; |
92907-06100-00 |
from US $0.88 |
||
|
4
|
4
92907-06600-00 Washer, PlateＷＡＳＨＥＲ; |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
5M0-82310-M0-00
Ignition Coil Assemb
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
5
|
5
4RP-82310-29-00 Ignition Coil AssemblyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4RP-82310-29-00 |
from US $89.39 |
||
|
5
|
5
4RP-82310-28-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4RP-82310-28-00 |
from US $91.57 |
||
|
5
|
5
4RP-82310-27-00
Ignition Coil Assy
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4RP-82310-27-00 |
— | ||
|
5
|
5
4RP-82310-26-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
4RP-82310-26-00 |
from US $81.02 |
||
|
6
|
6
98507-06016-00 Screw, Pan HeadＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98507-06016-00 |
from US $1.52 |
||
|
7
|
7
81E-82370-20-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
7
|
7
8DG-82370-00-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
8DG-82370-00-00 |
from US $28.34 |
||
|
8
|
8
82F-81910-A0-00 Voltage Regulator AssyＶＯＬＴＡＧＥ ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
8
|
8
7XE-81910-00-00 Voltage Regulator AsＶＯＬＴＡＧＥ ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
7XE-81910-00-00 |
from US $42.69 |
||
|
9
|
9
90159-06056-00 Screw, With WasherＳＣＲＥＷ， ｗｉｔｈ ｗａｓｈｅｒ; |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
901-59068-47-00 Screw, With WasherＳＣＲＥＷ， ｗｉｔｈ ｗａｓｈｅｒ; |
901-59068-47-00 |
from US $1.70 |
||
|
10
|
10
2XJ-82590-00-00 Wire Harness AssemblyＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ; |
2XJ-82590-00-00 |
US $201.13 |
||
|
11
|
11
437-83936-11-00 Band, Switch CordＢＡＮＤ， ｓｗｉｔｃｈ ｃｏｒｄ; |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
2XJ-82510-01-00 Main Switch AssyＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
2XJ-82510-01-00 |
from US $58.48 |
||
| replacement | |||||
|
12
|
12
2XJ-82510-02-00 Main Switch AssyＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
2XJ-82510-02-00 |
from US $50.84 |
||
|
13
|
13
3HN-82579-00-00 Cap, KeyＣＡＰ， ｋｅｙ; |
3HN-82579-00-00 |
from US $5.74 |
||
|
14
|
14
2GU-85590-M0-00 Control Unit AssemblyＣＯＮＴＲＯＬ ＵＮＩＴ ＡＳＳＹ; |
2GU-85590-M0-00 |
US $124.63 |
||
|
15
|
15
985-07060-20-00
Screw, Pan Head
ＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
985-07060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-06020-00 Screw, PanＳＣＲＥＷ， ｐａｎ ｈｅａｄ; |
98517-06020-00 |
from US $1.25 |
||
|
16
|
16
92907-06100-00 Washer, SpringＷＡＳＨＥＲ; |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
92907-06600-00 Washer, PlateＷＡＳＨＥＲ; |
92907-06600-00 |
from US $1.18 |
||
|
18
|
18
2XJ-83530-00-00 Pilot Light AssemblyＰＩＬＯＴ ＬＩＧＨＴ ＡＳＳＹ; |
2XJ-83530-00-00 |
from US $25.85 |
||
| replacement | |||||
|
18
|
18
3FA-83530-10-00 Pilot Light AssemblyＰＩＬＯＴ ＬＩＧＨＴ ＡＳＳＹ; |
3FA-83530-10-00 |
US $31.36 |
||
|
19
|
19
2XJ-83516-00-00 BulbＢＵＬＢ ; １２Ｖ−３４Ｗ |
2XJ-83516-00-00 |
from US $6.09 |
||
|
20
|
20
4U3-83585-00-00 LabelＬＡＢＥＬ; |
4U3-83585-00-00 |
US $5.11 |
||
|
21
|
21
2XJ-85720-01-00 Oil Level Gauge AssyＯＩＬ ＬＥＶＥＬ ＧＡＵＧＥ ＡＳＳＹ; |
2XJ-85720-01-00 |
from US $47.03 |
||
| replacement | |||||
|
21
|
21
2XJ-85720-04-00
Oil Level Gauge Assy
ＯＩＬ ＬＥＶＥＬ ＧＡＵＧＥ ＡＳＳＹ; |
2XJ-85720-04-00 |
— | ||
