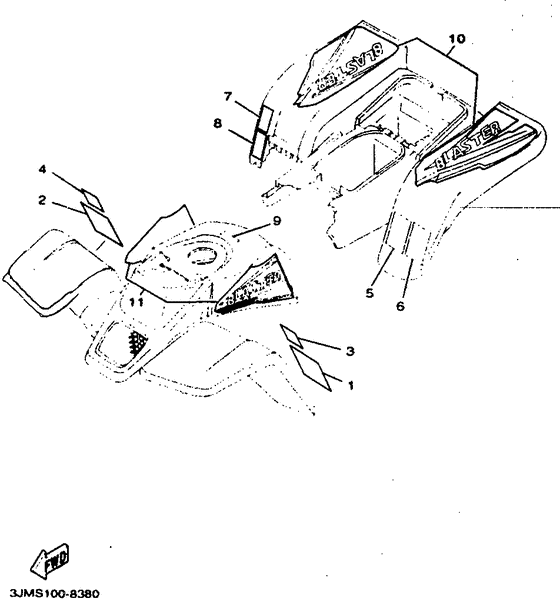

Emblem label 2 Diagram Yamaha BLASTER Blaster
- Model code
- 3JMT
- Engine Capacity
- 195
- Year
- 1998
- Sales region
- Canada (010)
- Colour
- Radical White (RW; 00UJ)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4WU-21568-00-00
Label, Warning
English attached to "2xj-y2151 |
4WU-21568-00-00 |
— | ||
|
02
|
02
4WU-21568-10-00 Label, WarningFrench attached to "2xj-y2152- |
4WU-21568-10-00 |
from US $19.84 |
||
|
03
|
03
3JM-21697-00-00
Label, Caution 2
English attached to "2xj-y2151 |
3JM-21697-00-00 |
— | ||
|
04
|
04
3JM-21697-10-00 Label, Caution 2French attached to "2xj-y2152- |
3JM-21697-10-00 |
US $16.15 |
||
| replacement | |||||
|
04
|
04
4D3-2816L-10-00 Label, Warning AgeFrench attached to "2xj-y2152- |
4D3-2816L-10-00 |
US $16.15 |
||
|
05
|
05
3JM-21696-00-00
Label, Caution
English attached to "2xj-w216c |
3JM-21696-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
English attached to "2xj-w216c |
999-99999-99-00 |
— | ||
|
06
|
06
3JM-21696-10-00
Label, Caution
French attached to "2xj-w216c- |
3JM-21696-10-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
French attached to "2xj-w216c- |
999-99999-99-00 |
— | ||
|
07
|
07
4WU-2151H-00-00
Label 5
English attached to "2xj-w216c |
4WU-2151H-00-00 |
— | ||
|
08
|
08
4WU-2151H-10-00 Label 5French attached to "2xj-w216c- |
4WU-2151H-10-00 |
US $12.04 |
||
|
09
|
09
4SH-2416E-00-00
Label, Caution Canada
|
4SH-2416E-00-00 |
— | ||
|
10
|
10
3JM-2165B-00-00
Graphic Set, Rear Fender
Ur for dpbse |
3JM-2165B-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
Ur for dpbse |
999-99999-99-00 |
— | ||
|
10
|
10
3JM-2165B-10-00
Graphic Set, Rear Fender
Ur for htr |
3JM-2165B-10-00 |
— | ||
|
11
|
11
3JM-2173L-00-00
Graphic Set 1
Ur for dpbse |
3JM-2173L-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
Ur for dpbse |
999-99999-99-00 |
— | ||
|
11
|
11
3JM-2173L-10-00
Graphic Set 1
Ur for htr |
3JM-2173L-10-00 |
— | ||
