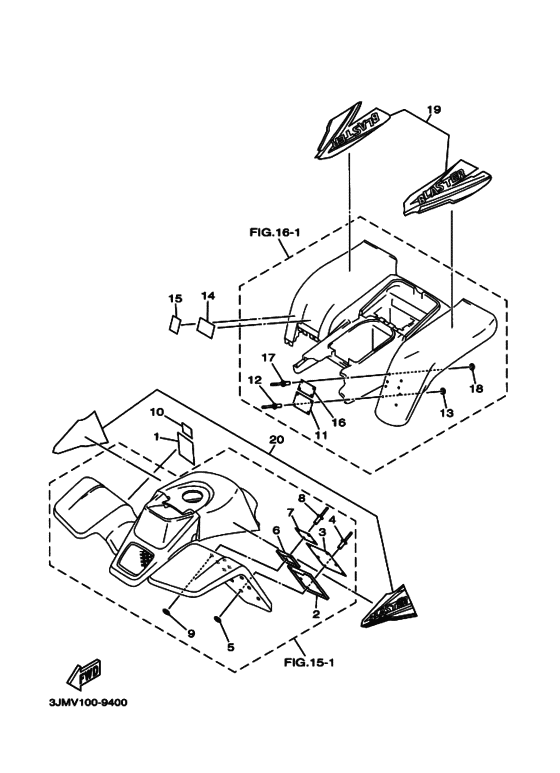

Emblem. label 4 Diagram Yamaha BLASTER Blaster
- Model code
- 3JMX
- Engine Capacity
- 195
- Year
- 1999
- Sales region
- Japan (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SH-21568-00-00 Label, WarningＬＡＢＥＬ， ＷＡＲＮＩＮＧ; |
4SH-21568-00-00 |
US $21.15 |
||
|
2
|
2
4EM-21581-20-00 Stay, Plate Fitting 1ＳＴＡＹ， ＰＬＡＴＥ ＦＩＴＴＩＮＧ １; |
4EM-21581-20-00 |
from US $21.25 |
||
|
3
|
3
5FE-21568-10-00 Label, WarningＬＡＢＥＬ， ＷＡＲＮＩＮＧ; |
5FE-21568-10-00 |
US $51.81 |
||
|
4
|
4
90267-32198-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32198-00 |
from US $2.27 |
||
|
5
|
5
90201-03313-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03313-00 |
from US $1.84 |
||
|
6
|
6
3JM-21591-10-00 Stay, Plate Fitting 2ＳＴＡＹ， ＰＬＡＴＥ ＦＩＴＴＩＮＧ ２; ＤＰＢＳＥ （ＢＬＵＥ） |
3JM-21591-10-00 |
from US $19.27 |
||
|
7
|
7
5FE-21697-00-00 Label, Warning AgeＬＡＢＥＬ， ＣＡＵＴＩＯＮ ２; |
5FE-21697-00-00 |
from US $22.24 |
||
| replacement | |||||
|
7
|
7
4D3-2816L-00-00 Label, Warning AgeＬＡＢＥＬ， ＣＡＵＴＩＯＮ ２; |
4D3-2816L-00-00 |
from US $19.54 |
||
|
8
|
8
90267-32198-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32198-00 |
from US $2.27 |
||
|
9
|
9
90201-03313-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03313-00 |
from US $1.84 |
||
|
10
|
10
4SH-21697-00-00 Label, Caution 2ＬＡＢＥＬ， ＣＡＵＴＩＯＮ ２; |
4SH-21697-00-00 |
US $14.17 |
||
|
11
|
11
3JM-21696-40-00 Label, CautionＬＡＢＥＬ， ＣＡＵＴＩＯＮ; |
3JM-21696-40-00 |
from US $23.94 |
||
| replacement | |||||
|
11
|
11
3JM-21696-41-00 Label, CautionＬＡＢＥＬ， ＣＡＵＴＩＯＮ; |
3JM-21696-41-00 |
from US $21.60 |
||
|
12
|
12
90267-32018-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32018-00 |
from US $1.58 |
||
| replacements | |||||
|
12
|
12
90267-32071-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32071-00 |
from US $2.05 |
||
|
12
|
12
90267-32801-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32801-00 |
US $3.12 |
||
|
13
|
13
90201-03313-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03313-00 |
from US $1.84 |
||
|
14
|
14
3JM-21696-30-00 Label, CautionＬＡＢＥＬ， ＣＡＵＴＩＯＮ; |
3JM-21696-30-00 |
US $21.60 |
||
|
15
|
15
4LB-2151H-01-00 Label 5ＬＡＢＥＬ ５; |
4LB-2151H-01-00 |
US $11.19 |
||
|
16
|
16
5FE-2151H-00-00 Label 5ＬＡＢＥＬ ５; |
5FE-2151H-00-00 |
US $23.80 |
||
|
17
|
17
90267-32018-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32018-00 |
from US $1.58 |
||
| replacements | |||||
|
17
|
17
90267-32071-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32071-00 |
from US $2.05 |
||
|
17
|
17
90267-32801-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-32801-00 |
US $3.12 |
||
|
18
|
18
90201-03313-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-03313-00 |
from US $1.84 |
||
|
19
|
19
3JM-2165B-B0-00
Graphic Set,rear Fender
ＧＲＡＰＨＩＣ ＳＥＴ， ＲＥＡＲ ＦＥＮＤＥＲ; |
3JM-2165B-B0-00 |
— | ||
|
20
|
20
3JM-2173L-50-00
Graphic Set 1
ＧＲＡＰＨＩＣ ＳＥＴ １; |
3JM-2173L-50-00 |
— | ||
