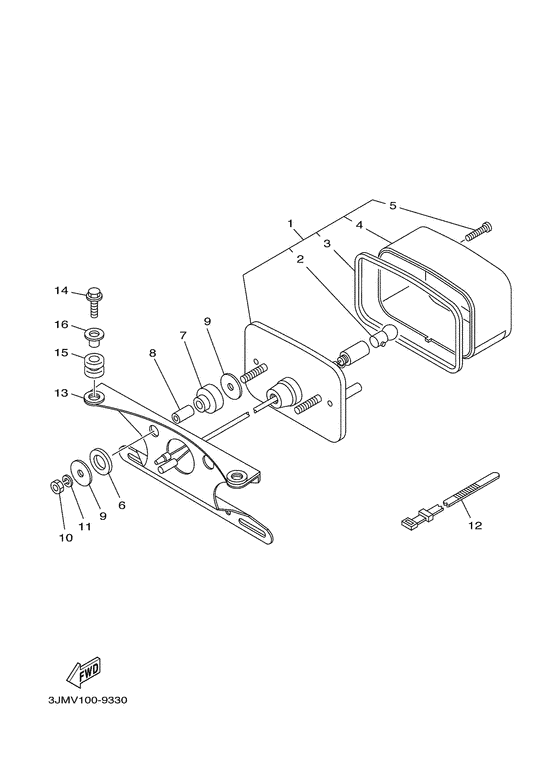

Taillight 2 Diagram Yamaha BLASTER Blaster
- Model code
- 5KJ2
- Engine Capacity
- 195
- Year
- 2000
- Sales region
- Canada (010)
- Colour
- Radical White (RW; 00UJ)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-84710-00-00 Taillight Unit Assy |
3GD-84710-00-00 |
US $60.86 |
||
| replacement | |||||
|
01
|
01
3GB-84710-00-00
Taillight Unit Assy
|
3GB-84710-00-00 |
— | ||
|
02
|
02
3GD-84714-00-00 Bulb |
3GD-84714-00-00 |
US $10.74 |
||
| replacement | |||||
|
02
|
02
3GD-84714-00-XX Bulb (12V-7.5W) |
3GD-84714-00-XX |
US $10.74 |
||
|
03
|
03
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $5.06 |
||
|
04
|
04
3L6-84521-00-00 Lens, Taillight |
3L6-84521-00-00 |
from US $21.93 |
||
| replacement | |||||
|
04
|
04
1K8-84521-00-00 Lens, Taillight |
1K8-84521-00-00 |
from US $23.99 |
||
|
05
|
05
2E9-84524-00-00 Screw, Tapping |
2E9-84524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
06
|
06
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
07
|
07
90480-10509-00 Grommet |
90480-10509-00 |
US $30.20 |
||
|
08
|
08
90387-06387-00
Collar
|
90387-06387-00 |
— | ||
|
09
|
09
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
10
|
10
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
13
|
13
3GB-84702-00-00
Bracket, Taillight
|
3GB-84702-00-00 |
— | ||
|
14
|
14
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.18 |
||
| replacements | |||||
|
14
|
14
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
14
|
14
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
15
|
15
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
15
|
15
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
16
|
16
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
