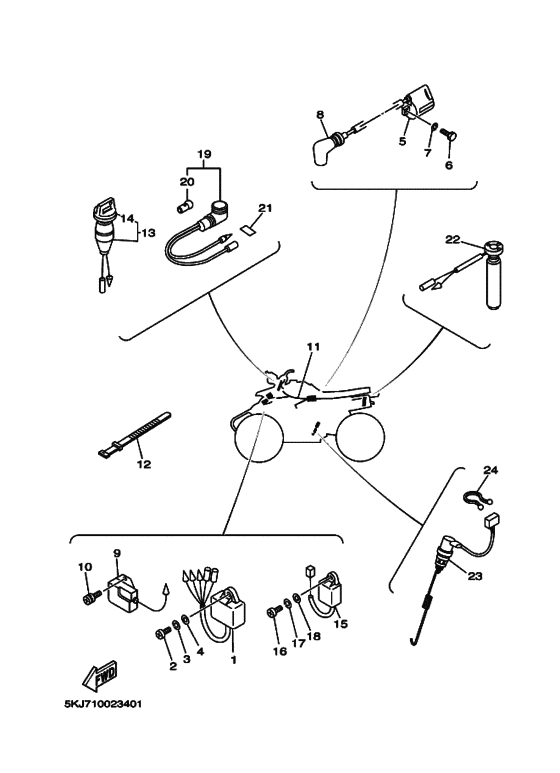

Electrical 1 Diagram Yamaha BLASTER Blaster
- Model code
- 5KJ8
- Engine Capacity
- 195
- Year
- 2002
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FL-85540-10-00
Cdi Unit Assy
|
3FL-85540-10-00 |
— | ||
|
2
|
2
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
3NS-82310-10-00 Ignition Coil Assy |
3NS-82310-10-00 |
from US $50.67 |
||
| replacements | |||||
|
5
|
5
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
5
|
5
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
5
|
5
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
5
|
5
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
6
|
6
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
1M1-82370-30-00 Plug Cap Assy |
1M1-82370-30-00 |
from US $28.34 |
||
| replacement | |||||
|
8
|
8
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
9
|
9
82F-81910-A0-00 Voltage Regulator Assy |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
9
|
9
7XE-81910-00-00 Voltage Regulator As |
7XE-81910-00-00 |
from US $42.69 |
||
|
10
|
10
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
11
|
11
5KJ-82590-00-00 Wire Harness Assy |
5KJ-82590-00-00 |
US $201.13 |
||
|
12
|
12
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
2XJ-82510-01-00 Main Switch Assy |
2XJ-82510-01-00 |
from US $58.48 |
||
| replacement | |||||
|
13
|
13
2XJ-82510-02-00 Main Switch Assy |
2XJ-82510-02-00 |
from US $50.84 |
||
|
14
|
14
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.74 |
||
|
15
|
15
3GG-85590-00-00
Control Unit Assy
|
3GG-85590-00-00 |
— | ||
|
16
|
16
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
17
|
17
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
19
|
19
2XJ-83530-10-00
Pilot Light Assy
RED |
2XJ-83530-10-00 |
— | ||
|
20
|
20
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
21
|
21
4U3-83585-00-00 Label |
4U3-83585-00-00 |
US $5.11 |
||
|
22
|
22
2XJ-85720-03-00
Oil Level Gauge Assy
|
2XJ-85720-03-00 |
— | ||
| replacement | |||||
|
22
|
22
2XJ-85720-04-00
Oil Level Gauge Assy
|
2XJ-85720-04-00 |
— | ||
|
23
|
23
5KJ-82530-00-00
Stop Switch Assy
|
5KJ-82530-00-00 |
— | ||
|
24
|
24
90464-16039-00 Clamp (3Y2) |
90464-16039-00 |
from US $1.81 |
||
