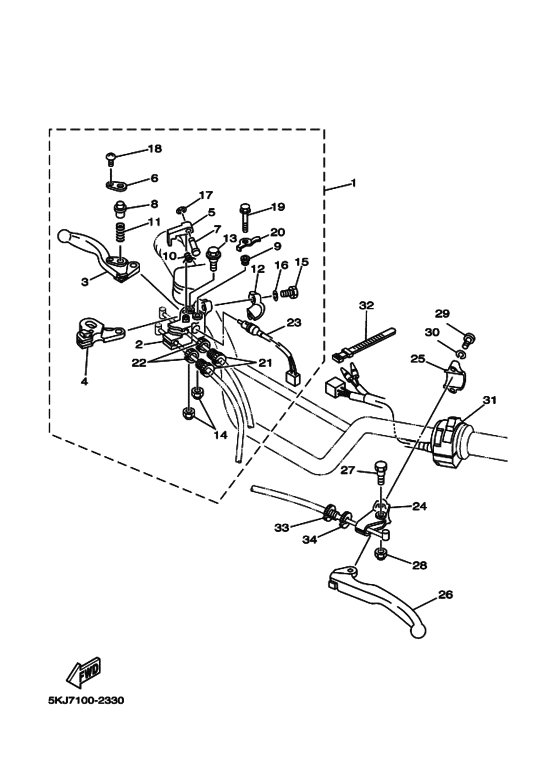

Handle switch & lever Diagram Yamaha BLASTER Blaster
- Model code
- 5KJ8
- Engine Capacity
- 195
- Year
- 2002
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KJ-82920-00-00 Lever Holder Assy (Right) |
5KJ-82920-00-00 |
US $192.19 |
||
|
2
|
2
3GH-82921-01-00 Holder, Lever 2 |
3GH-82921-01-00 |
US $42.98 |
||
|
3
|
3
3GH-83922-10-00 Lever 2 |
3GH-83922-10-00 |
from US $31.74 |
||
|
4
|
4
3GH-83912-10-00 Lever 1 |
3GH-83912-10-00 |
from US $24.82 |
||
|
5
|
5
3JM-83965-00-00 Lever, Lock |
3JM-83965-00-00 |
US $14.51 |
||
|
6
|
6
1UY-83935-10-00 Cover |
1UY-83935-10-00 |
from US $4.82 |
||
|
7
|
7
3FA-83967-00-00 Pin, Lock 1 |
3FA-83967-00-00 |
from US $4.53 |
||
|
8
|
8
1UY-83967-10-00 Pin, Lock 1 |
1UY-83967-10-00 |
from US $11.62 |
||
|
9
|
9
1UY-83913-00-00 Collar, Lever 1 |
1UY-83913-00-00 |
from US $3.40 |
||
|
10
|
10
3GH-83966-00-00 Spring, Return |
3GH-83966-00-00 |
from US $5.14 |
||
|
11
|
11
1UY-83962-00-00 Spring |
1UY-83962-00-00 |
from US $1.98 |
||
|
12
|
12
2XJ-82913-00-00 Holder, Lever Lower 1 |
2XJ-82913-00-00 |
from US $13.46 |
||
|
13
|
13
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
13
|
13
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
14
|
14
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
97027-06025-00 Bolt, Hexagon |
97027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
3FA-26466-00-00 Ring, Snap |
3FA-26466-00-00 |
from US $2.69 |
||
|
18
|
18
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
18
|
18
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
19
|
19
95807-06040-00 Bolt, Flange |
95807-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
20
|
20
3JM-8331L-10-00 Plate, Stopper |
3JM-8331L-10-00 |
from US $6.31 |
||
|
21
|
21
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
21
|
21
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
22
|
22
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
22
|
22
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
23
|
23
3FA-83980-10-00 Front Stop Switch Assy |
3FA-83980-10-00 |
from US $60.38 |
||
|
24
|
24
38V-82911-00-00 Holder, Lever 1 |
38V-82911-00-00 |
from US $42.41 |
||
|
25
|
25
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $5.06 |
||
|
26
|
26
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
26
|
26
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
27
|
27
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
28
|
28
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
28
|
28
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
29
|
29
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
29
|
29
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
30
|
30
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
31
|
31
5KJ-83975-00-00
Switch, Handle 2
|
5KJ-83975-00-00 |
— | ||
| replacement | |||||
|
31
|
31
5KJ-83975-09-00
Switch, Handle 2
|
5KJ-83975-09-00 |
— | ||
|
32
|
32
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
33
|
33
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
33
|
33
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
34
|
34
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
34
|
34
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
