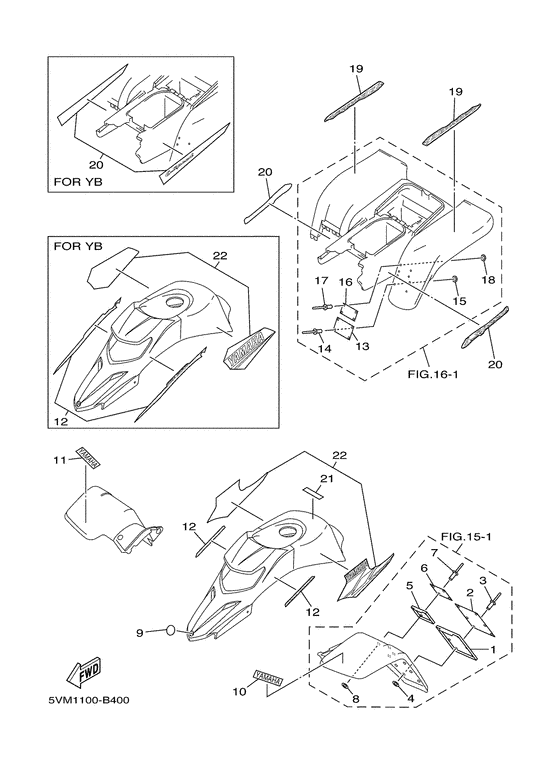

Emblem.label 2 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM1
- Engine Capacity
- 195
- Year
- 2003
- Sales region
- Australia (020)
- Colour
- Yamaha Black (YB; 0033)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21581-20-00 Stay, Plate Fitting 1Ur for dpbse |
4EM-21581-20-00 |
from US $21.25 |
||
|
01
|
01
4EM-21581-40-00
Stay, Plate Fitting 1
Ur for yb |
4EM-21581-40-00 |
— | ||
|
02
|
02
5FE-21568-11-00 Label, Warning |
5FE-21568-11-00 |
from US $26.94 |
||
|
03
|
03
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
04
|
04
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
05
|
05
3JM-21591-10-00 Stay, Plate Fitting 2Ur for dpbse |
3JM-21591-10-00 |
from US $19.27 |
||
|
05
|
05
3JM-21591-40-00 Stay, Plate Fitting 2Ur for yb |
3JM-21591-40-00 |
from US $16.16 |
||
|
06
|
06
5FE-21697-01-00
Label, Warning Age
|
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
06
|
06
4D3-2816L-00-00 Label, Warning Age |
4D3-2816L-00-00 |
from US $19.54 |
||
|
07
|
07
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
08
|
08
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
09
|
09
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
10
|
10
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
10
|
10
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
10
|
10
3GD-2153E-10-00 Emblem, YamahaUr for yb |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
10
|
10
3GD-2153E-11-00 EMBLEM, YAMAHAUr for yb |
3GD-2153E-11-00 |
from US $5.07 |
||
|
11
|
11
3GD-2153E-10-00 Emblem, YamahaUr for yb |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
11
|
11
3GD-2153E-11-00 EMBLEM, YAMAHAUr for yb |
3GD-2153E-11-00 |
from US $5.07 |
||
|
11
|
11
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
11
|
11
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
12
|
12
5VM-21565-00-00 Emblem 2Ur for dpbse |
5VM-21565-00-00 |
US $2.18 |
||
|
12
|
12
5VM-2159A-00-00
Graphic Set 1
Ur for yb |
5VM-2159A-00-00 |
— | ||
|
13
|
13
3JM-21696-41-00 Label, Caution |
3JM-21696-41-00 |
from US $21.60 |
||
|
14
|
14
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
15
|
15
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
16
|
16
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
17
|
17
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
18
|
18
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
19
|
19
5VM-21609-00-00
Emblem
Ur for dpbse |
5VM-21609-00-00 |
— | ||
| replacement | |||||
|
19
|
19
5VM-21609-09-00
Emblem
Ur for dpbse |
5VM-21609-09-00 |
— | ||
|
19
|
19
5VM-21609-10-00 EmblemUr for yb |
5VM-21609-10-00 |
US $10.43 |
||
|
20
|
20
5VM-2163H-00-00
Emblem 2
Ur for dpbse |
5VM-2163H-00-00 |
— | ||
|
20
|
20
5VM-2165A-00-00
Graphic Set, Rear Fender
Ur for yb |
5VM-2165A-00-00 |
— | ||
|
21
|
21
5JJ-2415A-00-00
Label, Caution
|
5JJ-2415A-00-00 |
— | ||
|
22
|
22
5VM-2173L-00-00 Graphic Set 1Ur for dpbse |
5VM-2173L-00-00 |
from US $40.58 |
||
|
22
|
22
5VM-2173L-10-00
Graphic Set 1
Ur for yb |
5VM-2173L-10-00 |
— | ||
