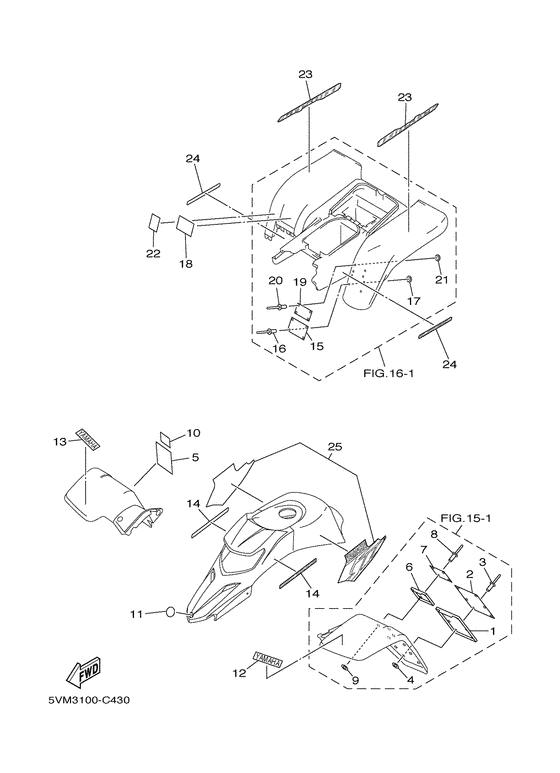

Emblem & label 5 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM3
- Engine Capacity
- 195
- Year
- 2004
- Sales region
- Japan (030)
- Colour
- Yamaha Black (YB; 0033)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21581-20-00 Stay, Plate Fitting 1 |
4EM-21581-20-00 |
from US $21.25 |
||
|
02
|
02
5FE-21568-11-00 Label, WarningEnglish |
5FE-21568-11-00 |
from US $26.94 |
||
|
03
|
03
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
04
|
04
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
05
|
05
4SH-21568-00-00 Label, WarningJapanese |
4SH-21568-00-00 |
US $21.15 |
||
|
06
|
06
3JM-21591-10-00 Stay, Plate Fitting 2 |
3JM-21591-10-00 |
from US $19.27 |
||
|
07
|
07
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
07
|
07
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $19.54 |
||
|
08
|
08
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
09
|
09
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
10
|
10
4SH-21697-00-00 Label, Caution 2Japanese |
4SH-21697-00-00 |
US $14.17 |
||
|
11
|
11
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
12
|
12
3GD-2153E-00-00 Emblem, Yamaha |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-01-00 EMBLEM YAMAHA |
3GD-2153E-01-00 |
from US $5.93 |
||
|
13
|
13
3GD-2153E-00-00 Emblem, Yamaha |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
13
|
13
3GD-2153E-01-00 EMBLEM YAMAHA |
3GD-2153E-01-00 |
from US $5.93 |
||
|
14
|
14
5VM-21565-10-00 Emblem 2 |
5VM-21565-10-00 |
US $2.18 |
||
| replacement | |||||
|
14
|
14
5VM-21565-11-00
Emblem 2
|
5VM-21565-11-00 |
— | ||
|
15
|
15
3JM-21696-41-00 Label, CautionEnglish |
3JM-21696-41-00 |
from US $21.60 |
||
|
16
|
16
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
3JM-21696-31-00 Label, CautionJapanese |
3JM-21696-31-00 |
US $21.60 |
||
|
19
|
19
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
20
|
20
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
21
|
21
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
22
|
22
4LB-2151H-01-00 Label 5Japanese |
4LB-2151H-01-00 |
US $11.19 |
||
|
23
|
23
5VM-21609-20-00 Emblem |
5VM-21609-20-00 |
US $10.84 |
||
| replacement | |||||
|
23
|
23
5VM-21609-21-00 Emblem |
5VM-21609-21-00 |
US $10.84 |
||
|
24
|
24
5VM-2163H-10-00
Emblem 2
|
5VM-2163H-10-00 |
— | ||
| replacement | |||||
|
24
|
24
5VM-2163H-11-00
Emblem 2
|
5VM-2163H-11-00 |
— | ||
