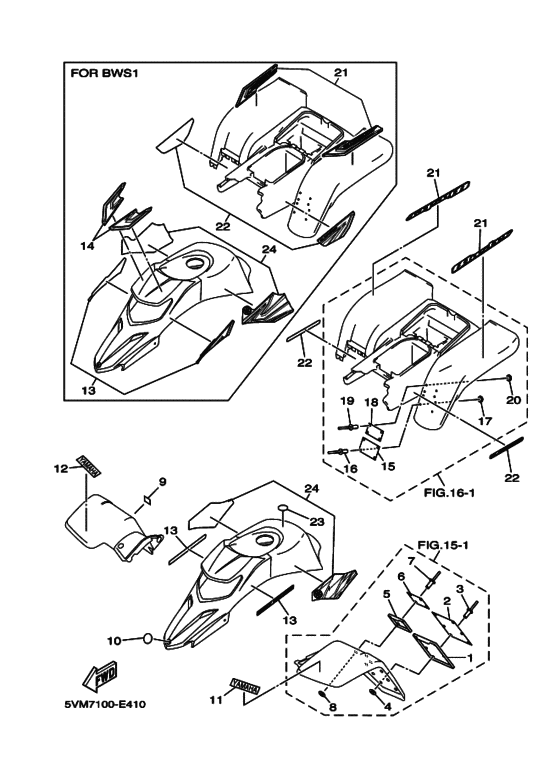

Emblem & label 3 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM8
- Engine Capacity
- 195
- Year
- 2006
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EM-21581-20-00 Stay, Plate Fitting 1UR FOR DPBSE |
4EM-21581-20-00 |
from US $21.25 |
||
|
2
|
2
5FK-21568-00-00 Label, Warning |
5FK-21568-00-00 |
US $59.55 |
||
|
3
|
3
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
4
|
4
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
5
|
5
3JM-21591-10-00 Stay, Plate Fitting 2UR FOR DPBSE |
3JM-21591-10-00 |
from US $19.27 |
||
|
6
|
6
5FK-21697-00-00 Label, Caution 2 |
5FK-21697-00-00 |
US $47.11 |
||
|
7
|
7
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
8
|
8
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
9
|
9
4GB-2155A-00-00
Mark, Ce
|
4GB-2155A-00-00 |
— | ||
|
10
|
10
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
11
|
11
3GD-2153E-00-00 Emblem, YamahaUR FOR DPBSE |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
11
|
11
3GD-2153E-01-00 EMBLEM YAMAHAUR FOR DPBSE |
3GD-2153E-01-00 |
from US $5.93 |
||
|
12
|
12
3GD-2153E-00-00 Emblem, YamahaUR FOR DPBSE |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-01-00 EMBLEM YAMAHAUR FOR DPBSE |
3GD-2153E-01-00 |
from US $5.93 |
||
|
13
|
13
5VM-21565-11-00
Emblem 2
UR FOR DPBSE |
5VM-21565-11-00 |
— | ||
|
15
|
15
5KJ-21696-M0-00
Label, Caution
|
5KJ-21696-M0-00 |
— | ||
|
16
|
16
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
5FK-2151H-00-00
Label 5
|
5FK-2151H-00-00 |
— | ||
|
19
|
19
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
20
|
20
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
21
|
21
5VM-21609-50-00 EmblemUR FOR DPBSE |
5VM-21609-50-00 |
US $7.22 |
||
|
22
|
22
5VM-2163H-11-00
Emblem 2
UR FOR DPBSE |
5VM-2163H-11-00 |
— | ||
|
23
|
23
3ME-2415E-01-00 Label, Caution |
3ME-2415E-01-00 |
US $3.47 |
||
|
24
|
24
5VM-2173L-70-00 Graphic Set 1UR FOR DPBSE |
5VM-2173L-70-00 |
from US $73.15 |
||
