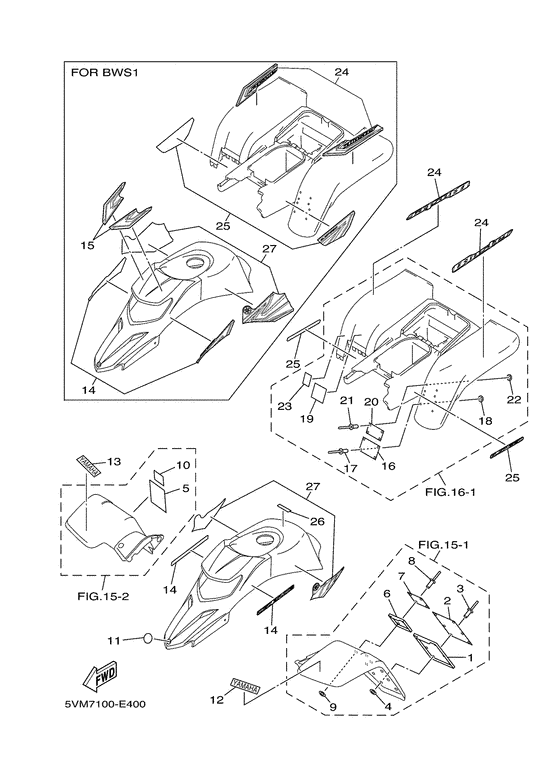

Emblem & label 2 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM8
- Engine Capacity
- 195
- Year
- 2006
- Sales region
- Canada (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21581-20-00 Stay, Plate Fitting 1Ur for dpbse |
4EM-21581-20-00 |
from US $21.25 |
||
|
01
|
01
4EM-21581-60-00 Stay, Plate Fitting 1Ur for bws1 |
4EM-21581-60-00 |
from US $16.33 |
||
|
02
|
02
5FE-21568-01-00 Label, WarningEnglish |
5FE-21568-01-00 |
from US $43.52 |
||
|
03
|
03
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
04
|
04
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
05
|
05
4WU-21568-10-00 Label, WarningFrench |
4WU-21568-10-00 |
from US $19.84 |
||
|
06
|
06
3JM-21591-10-00 Stay, Plate Fitting 2Ur for dpbse |
3JM-21591-10-00 |
from US $19.27 |
||
|
06
|
06
3JM-21591-60-00 Stay, Plate Fitting 2Ur for bws1 |
3JM-21591-60-00 |
from US $14.54 |
||
|
07
|
07
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
07
|
07
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $19.54 |
||
|
08
|
08
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
09
|
09
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
10
|
10
3JM-21697-10-00 Label, Caution 2French |
3JM-21697-10-00 |
US $16.15 |
||
| replacement | |||||
|
10
|
10
4D3-2816L-10-00 Label, Warning AgeFrench |
4D3-2816L-10-00 |
US $16.15 |
||
|
11
|
11
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
12
|
12
3GD-2153E-10-00 Emblem, YamahaUr for bws1 |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-11-00 EMBLEM, YAMAHAUr for bws1 |
3GD-2153E-11-00 |
from US $5.07 |
||
|
12
|
12
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
13
|
13
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
13
|
13
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
13
|
13
3GD-2153E-10-00 Emblem, YamahaUr for bws1 |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
13
|
13
3GD-2153E-11-00 EMBLEM, YAMAHAUr for bws1 |
3GD-2153E-11-00 |
from US $5.07 |
||
|
14
|
14
5VM-21565-11-00
Emblem 2
Ur for dpbse |
5VM-21565-11-00 |
— | ||
|
14
|
14
5VM-2159A-40-00 Graphic Set 1Ur for bws1 |
5VM-2159A-40-00 |
US $48.96 |
||
|
15
|
15
5VM-21570-30-00 Graphic Set, Front FenderFor bws1 |
5VM-21570-30-00 |
US $42.16 |
||
|
16
|
16
3JM-21696-41-00 Label, CautionEnglish |
3JM-21696-41-00 |
from US $21.60 |
||
|
17
|
17
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
18
|
18
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
19
|
19
3JM-21696-B1-00
Label, Caution
|
3JM-21696-B1-00 |
— | ||
|
20
|
20
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
21
|
21
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
22
|
22
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
23
|
23
4WU-2151H-10-00 Label 5French |
4WU-2151H-10-00 |
US $12.04 |
||
|
24
|
24
5VM-21609-50-00 EmblemUr for dpbse |
5VM-21609-50-00 |
US $7.22 |
||
|
24
|
24
5VM-2165B-00-00 Graphic Set, Rear FenderUr for bws1 |
5VM-2165B-00-00 |
US $72.36 |
||
|
25
|
25
5VM-2163H-11-00
Emblem 2
Ur for dpbse |
5VM-2163H-11-00 |
— | ||
|
25
|
25
5VM-2165A-40-00 Graphic Set, Rear FenderUr for bws1 |
5VM-2165A-40-00 |
US $81.38 |
||
|
26
|
26
4SH-2416E-00-00
Label, Caution Canada
English |
4SH-2416E-00-00 |
— | ||
|
27
|
27
5VM-2173L-80-00 Graphic Set 1Ur for bws1 |
5VM-2173L-80-00 |
US $137.70 |
||
|
27
|
27
5VM-2173L-70-00 Graphic Set 1Ur for dpbse |
5VM-2173L-70-00 |
from US $73.15 |
||
