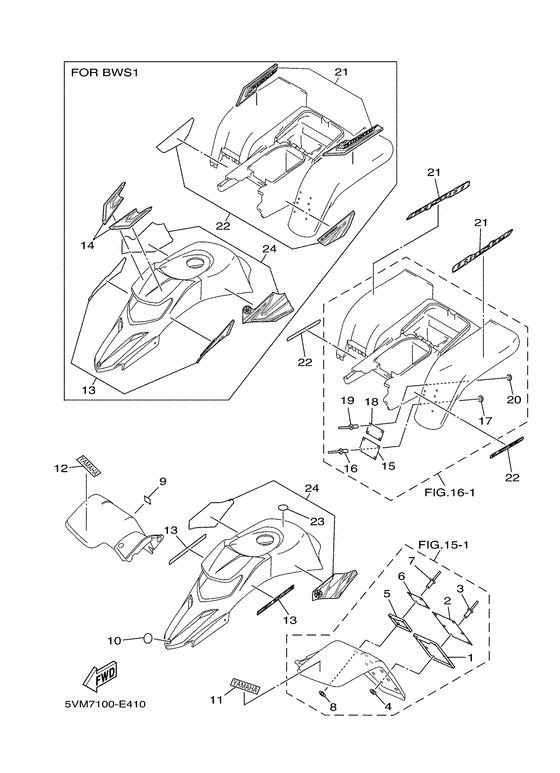

Emblem & label 3 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM8
- Engine Capacity
- 195
- Year
- 2006
- Sales region
- Europe (General) (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21581-20-00 Stay, Plate Fitting 1Ur for dpbse |
4EM-21581-20-00 |
from US $21.25 |
||
|
01
|
01
4EM-21581-60-00 Stay, Plate Fitting 1Ur for bws1 |
4EM-21581-60-00 |
from US $16.33 |
||
|
02
|
02
5FK-21568-00-00 Label, Warning |
5FK-21568-00-00 |
US $59.55 |
||
|
03
|
03
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
04
|
04
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
05
|
05
3JM-21591-10-00 Stay, Plate Fitting 2Ur for dpbse |
3JM-21591-10-00 |
from US $19.27 |
||
|
05
|
05
3JM-21591-60-00 Stay, Plate Fitting 2Ur for bws1 |
3JM-21591-60-00 |
from US $14.54 |
||
|
06
|
06
5FK-21697-00-00 Label, Caution 2 |
5FK-21697-00-00 |
US $47.11 |
||
|
07
|
07
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
08
|
08
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
09
|
09
4GB-2155A-00-00
Mark, Ce
|
4GB-2155A-00-00 |
— | ||
|
10
|
10
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
11
|
11
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
11
|
11
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
11
|
11
3GD-2153E-10-00 Emblem, YamahaUr for bws1 |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
11
|
11
3GD-2153E-11-00 EMBLEM, YAMAHAUr for bws1 |
3GD-2153E-11-00 |
from US $5.07 |
||
|
12
|
12
3GD-2153E-00-00 Emblem, YamahaUr for dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-01-00 EMBLEM YAMAHAUr for dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
12
|
12
3GD-2153E-10-00 Emblem, YamahaUr for bws1 |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-11-00 EMBLEM, YAMAHAUr for bws1 |
3GD-2153E-11-00 |
from US $5.07 |
||
|
13
|
13
5VM-21565-11-00
Emblem 2
Ur for dpbse |
5VM-21565-11-00 |
— | ||
|
13
|
13
5VM-2159A-40-00 Graphic Set 1Ur for bws1 |
5VM-2159A-40-00 |
US $48.96 |
||
|
14
|
14
5VM-21570-30-00 Graphic Set, Front FenderFor bws1 |
5VM-21570-30-00 |
US $42.16 |
||
|
15
|
15
5KJ-21696-M0-00
Label, Caution
|
5KJ-21696-M0-00 |
— | ||
|
16
|
16
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
5FK-2151H-00-00
Label 5
|
5FK-2151H-00-00 |
— | ||
|
19
|
19
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
20
|
20
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
21
|
21
5VM-21609-50-00 EmblemUr for dpbse |
5VM-21609-50-00 |
US $7.22 |
||
|
21
|
21
5VM-2165B-00-00 Graphic Set, Rear FenderUr for bws1 |
5VM-2165B-00-00 |
US $72.36 |
||
|
22
|
22
5VM-2163H-11-00
Emblem 2
Ur for dpbse |
5VM-2163H-11-00 |
— | ||
|
22
|
22
5VM-2165A-40-00 Graphic Set, Rear FenderUr for bws1 |
5VM-2165A-40-00 |
US $81.38 |
||
|
23
|
23
3ME-2415E-01-00 Label, Caution |
3ME-2415E-01-00 |
US $3.47 |
||
|
24
|
24
5VM-2173L-70-00 Graphic Set 1Ur for dpbse |
5VM-2173L-70-00 |
from US $73.15 |
||
|
24
|
24
5VM-2173L-80-00 Graphic Set 1Ur for bws1 |
5VM-2173L-80-00 |
US $137.70 |
||
