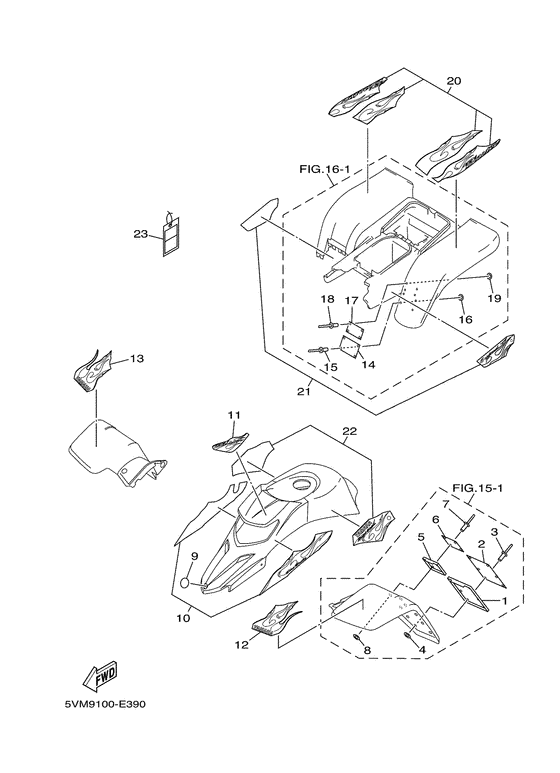

Emblem & label 1 Diagram Yamaha BLASTER Blaster
- Model code
- 5VM9
- Engine Capacity
- 195
- Year
- 2006
- Colour
- Black Metallic J (SMJ; 0906)
- Region Code
- 010
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EM-21581-40-00
Stay, Plate Fitting 1
|
4EM-21581-40-00 |
— | ||
|
02
|
02
5FE-21568-01-00 Label, WarningEnglish |
5FE-21568-01-00 |
from US $43.52 |
||
|
03
|
03
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
04
|
04
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
05
|
05
3JM-21591-40-00 Stay, Plate Fitting 2 |
3JM-21591-40-00 |
from US $16.16 |
||
|
06
|
06
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
06
|
06
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $19.54 |
||
|
07
|
07
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
08
|
08
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
09
|
09
4KN-2836B-00-00 Tuning Fork Mark |
4KN-2836B-00-00 |
from US $21.01 |
||
|
10
|
10
5VM-2159A-50-00 Graphic Set 1 |
5VM-2159A-50-00 |
US $110.23 |
||
|
11
|
11
5VM-21599-01-00 Graphic 3 |
5VM-21599-01-00 |
US $19.21 |
||
|
12
|
12
5VM-21569-00-00 Graphic 1 |
5VM-21569-00-00 |
US $66.69 |
||
|
13
|
13
5VM-21579-00-00 Graphic 2 |
5VM-21579-00-00 |
US $66.49 |
||
|
14
|
14
3JM-21696-41-00 Label, CautionEnglish |
3JM-21696-41-00 |
from US $21.60 |
||
|
15
|
15
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
16
|
16
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
17
|
17
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
18
|
18
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
19
|
19
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
20
|
20
5VM-2165B-10-00 Graphic Set, Rear Fender |
5VM-2165B-10-00 |
US $110.11 |
||
|
21
|
21
5VM-2165A-51-00 Graphic Set, Rear Fender |
5VM-2165A-51-00 |
from US $142.28 |
||
|
22
|
22
5VM-2173L-90-00 Graphic Set 1 |
5VM-2173L-90-00 |
US $201.49 |
||
|
23
|
23
5LP-2819R-00-00
Tag, Warning
|
5LP-2819R-00-00 |
— | ||
