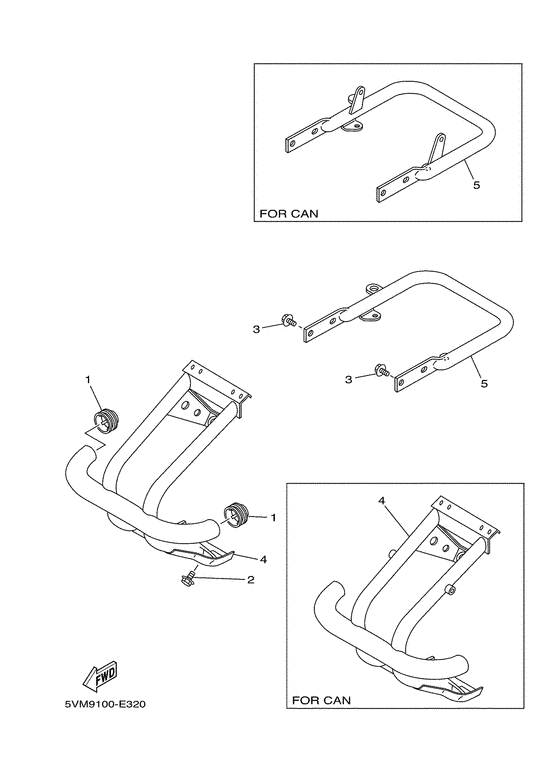

Guard Diagram Yamaha BLASTER Blaster
- Model code
- 5VM9
- Engine Capacity
- 195
- Year
- 2006
- Colour
- Black Metallic J (SMJ; 0906)
- Region Code
- 010
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2HR-28415-00-00 Damper 1 |
2HR-28415-00-00 |
from US $7.65 |
||
|
02
|
02
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
02
|
02
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
03
|
03
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
03
|
03
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
04
|
04
3JM-2845N-40-00 Bar, Carry Front |
3JM-2845N-40-00 |
US $225.04 |
||
|
05
|
05
5KJ-2845R-50-00 Bar, Carry Rear |
5KJ-2845R-50-00 |
US $114.64 |
||
