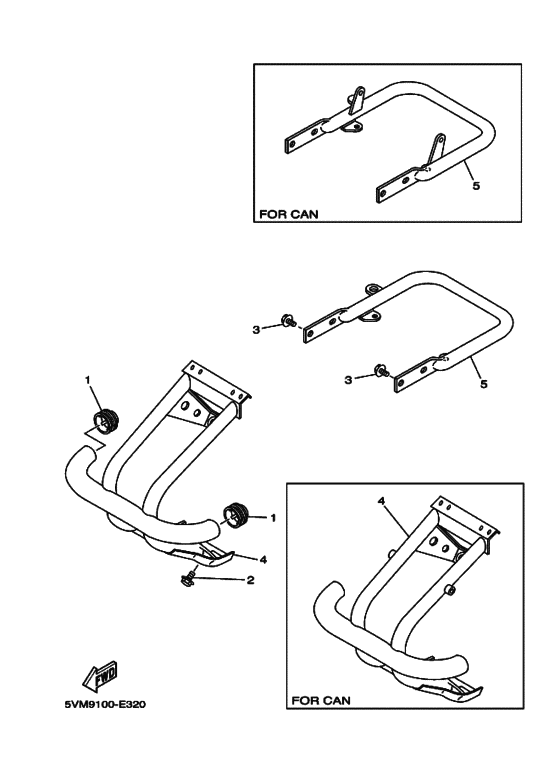

Guard Diagram Yamaha BLASTER Blaster Special Edition
- Model code
- 5VMA
- Engine Capacity
- 195
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Black Metallic J (SMJ; 0906)
- Color Variant
- A
- Power
- 27 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Blaster Special Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HR-28415-00-00 Damper 1 |
2HR-28415-00-00 |
from US $7.65 |
||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
4
|
4
3JM-2845N-50-00
Bar, Carry Front
|
3JM-2845N-50-00 |
— | ||
|
5
|
5
5KJ-2845R-60-00
Bar, Carry Rear
|
5KJ-2845R-60-00 |
— | ||
