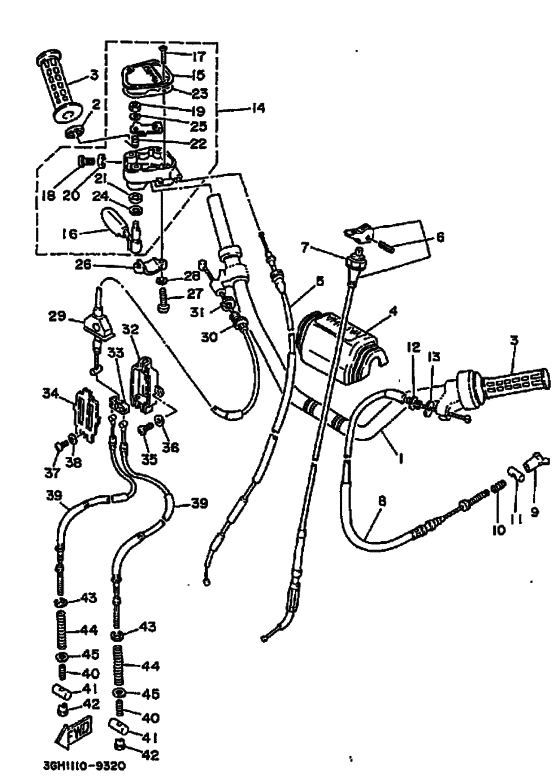

Steering handle & cable Diagram Yamaha MOTO-4 Moto-4 250
- Model code
- 3GH2
- Engine Capacity
- 250
- Year
- 1989
- Sales region
- Europe (010)
- Colour
- Chappy Red (CPR; 00E1)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4-х тактность
- 2WD/4WD/AWD
- 2 WD
- Model
- Moto-4 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59V-26111-01-00
Handlebar
|
59V-26111-01-00 |
— | ||
|
2
|
2
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
3
|
3
5V6-26241-01-00 GripL/H |
5V6-26241-01-00 |
from US $14.31 |
||
| replacement | |||||
|
3
|
3
3GB-26241-00-00 GripL/H |
3GB-26241-00-00 |
from US $14.31 |
||
|
4
|
4
1YW-26124-01-00
Protector, Handlebar
|
1YW-26124-01-00 |
— | ||
|
5
|
5
1YW-26311-00-00 Cable, Throttle 1 |
1YW-26311-00-00 |
from US $38.68 |
||
|
6
|
6
59V-26331-01-00 Cable, Starter 1 |
59V-26331-01-00 |
US $37.51 |
||
| replacement | |||||
|
6
|
6
59V-26331-02-00 |
59V-26331-02-00 |
US $33.79 |
||
|
7
|
7
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
8
|
8
1YW-26341-00-00 Cable, Brake |
1YW-26341-00-00 |
from US $51.53 |
||
|
9
|
9
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
10
|
10
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
11
|
11
902-49120-08-00 Pin1562723700 |
902-49120-08-00 |
from US $1.66 |
||
|
12
|
12
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
13
|
13
901-79081-48-00
Nut
168-26344-00 |
901-79081-48-00 |
— | ||
| replacement | |||||
|
13
|
13
901-79080-30-00 Nut168-26344-00 |
901-79080-30-00 |
from US $6.94 |
||
|
14
|
14
1NV-26250-01-00 Throttle Lever Assy-01- LEVER |
1NV-26250-01-00 |
from US $145.07 |
||
|
15
|
15
1NV-2628F-00-00 Cap, Gear |
1NV-2628F-00-00 |
US $38.48 |
||
|
16
|
16
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $43.76 |
||
|
17
|
17
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
17
|
17
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
17
|
17
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
18
|
18
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
19
|
19
95612-05100-00 Nut, U |
95612-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
20
|
20
95306-05700-00 Nut |
95306-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
21
|
21
93104-09025-00 Oil SealSO 9X15X4 |
93104-09025-00 |
from US $3.68 |
||
|
22
|
22
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
23
|
23
1NV-2628G-00-00 Gasket |
1NV-2628G-00-00 |
from US $7.18 |
||
|
24
|
24
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
25
|
25
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
26
|
26
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
27
|
27
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
27
|
27
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
28
|
28
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
29
|
29
1YW-26373-00-00 Cable, Brake 4 |
1YW-26373-00-00 |
from US $32.30 |
||
| replacement | |||||
|
29
|
29
1YW-26373-02-00 Cable, Brake 4 |
1YW-26373-02-00 |
from US $32.30 |
||
|
30
|
30
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
30
|
30
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
31
|
31
901-79081-48-00
Nut
168-26344-00 |
901-79081-48-00 |
— | ||
| replacement | |||||
|
31
|
31
901-79080-30-00 Nut168-26344-00 |
901-79080-30-00 |
from US $6.94 |
||
|
32
|
32
52H-26371-00-00 Housing, Brake Link |
52H-26371-00-00 |
from US $30.46 |
||
|
33
|
33
52H-26347-01-00 Joint, Cable |
52H-26347-01-00 |
from US $22.24 |
||
|
34
|
34
52H-2631G-00-00 Plate |
52H-2631G-00-00 |
from US $13.46 |
||
|
35
|
35
985-01050-16-00
Screw, Pan Head
702 |
985-01050-16-00 |
— | ||
| replacements | |||||
|
35
|
35
98507-05016-00 Screw, Pan Head702 |
98507-05016-00 |
from US $1.18 |
||
|
35
|
35
97885-05016-00 Screw, Pan Head702 |
97885-05016-00 |
from US $3.12 |
||
|
36
|
36
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
36
|
36
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
36
|
36
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
37
|
37
98501-03008-00 Screw, Pan Head448 |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
37
|
37
98580-03008-00 Screw, Pan Head448 |
98580-03008-00 |
from US $1.21 |
||
|
38
|
38
92902-03600-00 Washer |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
38
|
38
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
39
|
39
3GH-26361-00-00 Cable, Brake |
3GH-26361-00-00 |
from US $47.80 |
||
| replacement | |||||
|
39
|
39
3GH-26361-01-00 Cable, Brake |
3GH-26361-01-00 |
from US $47.80 |
||
|
40
|
40
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
41
|
41
902-49120-08-00 Pin1562723700 |
902-49120-08-00 |
from US $1.66 |
||
|
42
|
42
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
42
|
42
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
43
|
43
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
44
|
44
90501-123A0-00 Spring, Compression |
90501-123A0-00 |
from US $1.98 |
||
|
45
|
45
90209-06265-00 Washer |
90209-06265-00 |
from US $3.54 |
||
