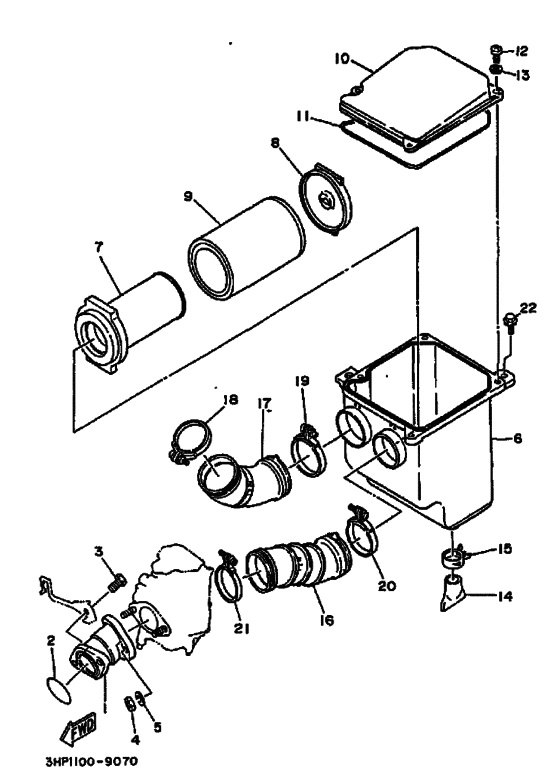

Intake Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- 3HP1
- Engine Capacity
- 350
- Year
- 1989
- Sales region
- Europe (030)
- Colour
- Beige (BEG; 00UK)
- Color Variant
- B
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-13586-00-00
Joint, Carb 1
|
3HN-13586-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3HN-13586-02-00 Joint, Carburetor 1 |
3HN-13586-02-00 |
from US $95.61 |
||
|
2
|
2
932-10445-45-00 O-Ring |
932-10445-45-00 |
from US $7.07 |
||
|
3
|
3
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
3
|
3
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
4
|
4
95303-08600-00 NutC62 |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
4
|
4
997-80086-00-00 Nut, HexC62 |
997-80086-00-00 |
from US $1.81 |
||
|
4
|
4
953-33086-00-00 NutC62 |
953-33086-00-00 |
from US $1.39 |
||
|
5
|
5
90201-084L7-00 Washer, Plate (2Nl)2NL |
90201-084L7-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
90201-08085-00 Washer, Plate2NL |
90201-08085-00 |
from US $1.70 |
||
|
6
|
6
1YW-14411-00-00 Case, Air Cleaner 1 |
1YW-14411-00-00 |
US $60.88 |
||
| replacement | |||||
|
6
|
6
1YW-14411-01-00
Case, Air Cleaner 1
|
1YW-14411-01-00 |
— | ||
|
7
|
7
1YW-14458-00-00 Guide |
1YW-14458-00-00 |
from US $59.69 |
||
| replacement | |||||
|
7
|
7
1YW-14458-01-00 Guide |
1YW-14458-01-00 |
from US $59.69 |
||
|
8
|
8
1UY-14468-00-00 Plate,element Fitting |
1UY-14468-00-00 |
from US $7.23 |
||
|
9
|
9
1YW-14451-00-00 Element, Air Cleaner |
1YW-14451-00-00 |
from US $14.43 |
||
| replacement | |||||
|
9
|
9
1YW-14451-01-00 ELEMENT, AIR CLEANER |
1YW-14451-01-00 |
from US $14.43 |
||
|
10
|
10
21V-14412-00-00 Cap, Cleaner Case 1 |
21V-14412-00-00 |
from US $13.72 |
||
| replacement | |||||
|
10
|
10
21V-14412-01-00 Cap, Cleaner Case 1 |
21V-14412-01-00 |
from US $15.44 |
||
|
11
|
11
21V-14462-00-00 Seal |
21V-14462-00-00 |
from US $9.49 |
||
| replacement | |||||
|
11
|
11
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
12
|
12
985-01050-16-00
Screw, Pan Head
702 |
985-01050-16-00 |
— | ||
| replacements | |||||
|
12
|
12
98507-05016-00 Screw, Pan Head702 |
98507-05016-00 |
from US $1.18 |
||
|
12
|
12
97885-05016-00 Screw, Pan Head702 |
97885-05016-00 |
from US $3.12 |
||
|
13
|
13
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
13
|
13
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
14
|
14
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $3.33 |
||
|
15
|
15
90467-22047-00 Clip7R5 |
90467-22047-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
904-67220-80-00 Clip7R5 |
904-67220-80-00 |
from US $1.56 |
||
|
16
|
16
1YW-14453-00-00
Joint, Air Cleaner 1
|
1YW-14453-00-00 |
— | ||
|
17
|
17
1YW-14437-00-00
Duct
|
1YW-14437-00-00 |
— | ||
|
18
|
18
90460-56105-00 Hose Clamp Assy1J2 |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
18
|
18
90450-56001-00 Hose Clamp Assy1J2 |
90450-56001-00 |
from US $14.73 |
||
|
19
|
19
90460-58015-00 Hose Clamp Assy3711445600 |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
19
|
19
90450-58002-00 Hose Clamp Assy3711445600 |
90450-58002-00 |
from US $4.53 |
||
|
20
|
20
90460-56105-00 Hose Clamp Assy1J2 |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
20
|
20
90450-56001-00 Hose Clamp Assy1J2 |
90450-56001-00 |
from US $14.73 |
||
|
21
|
21
90460-56105-00 Hose Clamp Assy1J2 |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
21
|
21
90450-56001-00 Hose Clamp Assy1J2 |
90450-56001-00 |
from US $14.73 |
||
|
22
|
22
90119-06096-00 Bolt, With Washer30 |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
22
|
22
90119-06063-00 Bolt, With Washer (10V)30 |
90119-06063-00 |
from US $1.81 |
||
