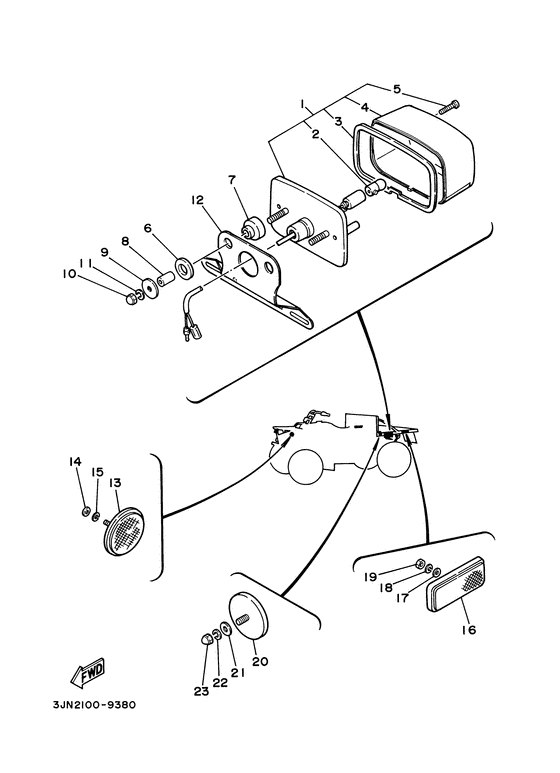

Taillight Diagram Yamaha PRO-4 Pro Hauler
- Model code
- 3JN8
- Engine Capacity
- 229,6
- Year
- 1990
- Sales region
- Europe (General) (010)
- Colour
- Ocean Blue (OCB; 00RR)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Pro Hauler
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-84710-00-00 Taillight Unit Assy |
3GD-84710-00-00 |
US $60.86 |
||
| replacement | |||||
|
01
|
01
3GB-84710-00-00
Taillight Unit Assy
|
3GB-84710-00-00 |
— | ||
|
02
|
02
3GD-84714-00-00 Bulb |
3GD-84714-00-00 |
US $10.74 |
||
| replacement | |||||
|
02
|
02
3GD-84714-00-XX Bulb (12V-7.5W) |
3GD-84714-00-XX |
US $10.74 |
||
|
03
|
03
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $5.06 |
||
|
04
|
04
1K8-84521-00-00 Lens, Taillight |
1K8-84521-00-00 |
from US $23.99 |
||
|
05
|
05
2E9-84524-00-00 Screw, Tapping |
2E9-84524-00-00 |
from US $2.13 |
||
| replacement | |||||
|
05
|
05
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
06
|
06
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
07
|
07
90480-10509-00 Grommet |
90480-10509-00 |
US $30.20 |
||
|
08
|
08
90387-06027-00 Collar |
90387-06027-00 |
from US $1.70 |
||
|
09
|
09
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.66 |
||
|
10
|
10
95301-06800-00 Nut |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
10
|
10
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
3JN-84702-00-00
Bracket, Taillight
|
3JN-84702-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2EK-85111-00-00 Reflector, Front 1 |
2EK-85111-00-00 |
from US $8.42 |
||
|
14
|
14
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
15
|
15
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
3Y6-85130-01-00 Rear Reflector Assy |
3Y6-85130-01-00 |
from US $21.40 |
||
| replacement | |||||
|
16
|
16
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
17
|
17
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
18
|
18
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
19
|
19
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
20
|
20
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
21
|
21
90201-05027-00 Washer, Plate |
90201-05027-00 |
from US $1.70 |
||
|
22
|
22
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
23
|
23
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
