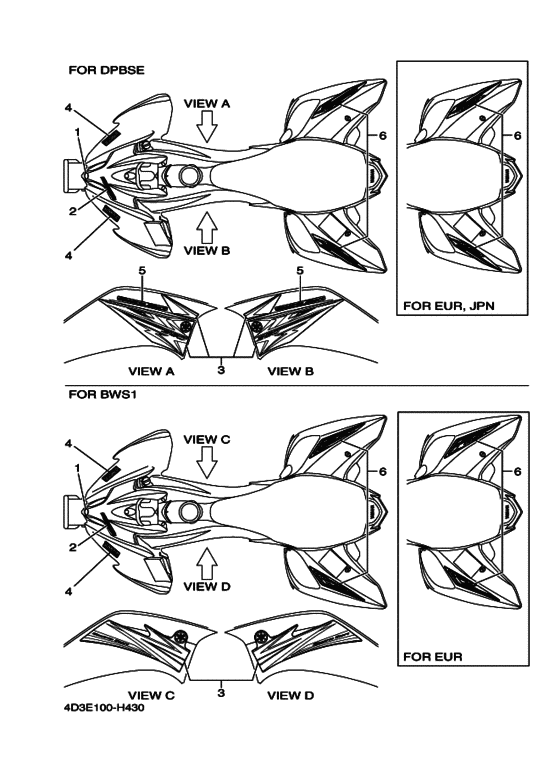

Graphics Diagram Yamaha RAPTOR 250 Raptor 250
- Model code
- 4D3E
- Engine Capacity
- 249
- Year
- 2009
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 23 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Raptor 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $20.39 |
||
|
2
|
2
4D3-21565-00-00 Emblem, 2UR FOR DPBSE |
4D3-21565-00-00 |
from US $3.83 |
||
|
3
|
3
4D3-21570-20-00 Graphic Set, Front FenderUR FOR DPBSE |
4D3-21570-20-00 |
US $54.59 |
||
| replacement | |||||
|
3
|
3
4D3-21570-29-00 GRAPHIC, FRONT FENDEUR FOR DPBSE |
4D3-21570-29-00 |
US $51.70 |
||
|
4
|
4
3GD-2153E-00-00 Emblem, YamahaUR FOR DPBSE |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
4
|
4
3GD-2153E-01-00 EMBLEM YAMAHAUR FOR DPBSE |
3GD-2153E-01-00 |
from US $5.93 |
||
|
5
|
5
4D3-2152A-10-00 Emblem 3FOR DPBSE |
4D3-2152A-10-00 |
US $2.57 |
||
|
6
|
6
4D3-2165A-20-00 Graphic Set, Rear FenderUR FOR DPBSE |
4D3-2165A-20-00 |
from US $31.95 |
||
