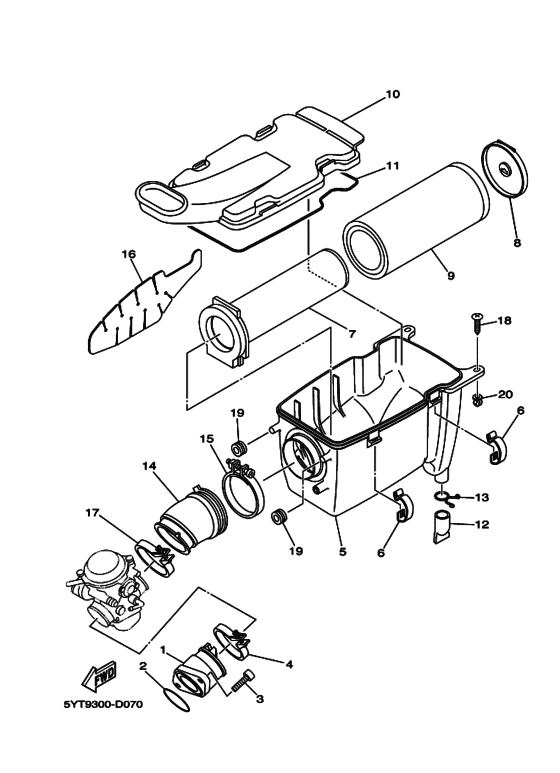

Intake Diagram Yamaha RAPTOR 350 Raptor 350
- Model code
- 1BS8
- Engine Capacity
- 348
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 27,2 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Raptor 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5YT-13586-00-00 Joint, Carburetor 1 |
5YT-13586-00-00 |
from US $59.96 |
||
|
2
|
2
932-10445-45-00 O-Ring |
932-10445-45-00 |
from US $7.07 |
||
|
3
|
3
91312-08025-00 Bolt |
91312-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
4
|
4
90450-52003-00 Hose Clamp Assy |
90450-52003-00 |
from US $6.80 |
||
| replacements | |||||
|
4
|
4
90450-52007-00 Hose Clamp Assy |
90450-52007-00 |
from US $6.80 |
||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
5YT-14411-00-00 Case, Air Cleaner 1 |
5YT-14411-00-00 |
from US $34.34 |
||
|
6
|
6
5GH-14436-00-00 Hook |
5GH-14436-00-00 |
from US $2.99 |
||
| replacement | |||||
|
6
|
6
5TH-14436-00-00 Hook |
5TH-14436-00-00 |
from US $2.70 |
||
|
7
|
7
1UY-14458-01-00 Guide |
1UY-14458-01-00 |
from US $36.06 |
||
|
8
|
8
1UY-14468-00-00 Plate,element Fitting |
1UY-14468-00-00 |
from US $7.23 |
||
|
9
|
9
1UY-14451-00-00 Element, Air Cleaner |
1UY-14451-00-00 |
US $21.50 |
||
| replacement | |||||
|
9
|
9
1UY-14451-01-00 ELEMENT,AIR CLNR |
1UY-14451-01-00 |
from US $19.40 |
||
|
10
|
10
5YT-14412-01-00 Cap, Cleaner Case 1 |
5YT-14412-01-00 |
from US $18.70 |
||
|
11
|
11
4FU-14452-00-00 Seal |
4FU-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
11
|
11
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
12
|
12
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $3.33 |
||
|
13
|
13
90467-220A1-00 Clip |
90467-220A1-00 |
from US $1.70 |
||
|
14
|
14
5YT-14453-00-00 Joint, Air Cleaner 1 |
5YT-14453-00-00 |
from US $22.81 |
||
|
15
|
15
90460-75020-00 Hose Clamp Assy |
90460-75020-00 |
from US $11.10 |
||
| replacement | |||||
|
15
|
15
904-50750-02-00 Hose Clamp Assy |
904-50750-02-00 |
from US $9.78 |
||
|
16
|
16
5YT-1442F-00-00 Protector |
5YT-1442F-00-00 |
from US $7.79 |
||
|
17
|
17
90450-63004-00 Hose Clamp Assy |
90450-63004-00 |
from US $10.06 |
||
| replacement | |||||
|
17
|
17
90450-63003-00 Hose Clamp Assy |
90450-63003-00 |
from US $10.06 |
||
|
18
|
18
97702-60025-00 Screw, Tapping |
97702-60025-00 |
from US $1.56 |
||
|
19
|
19
90480-15005-00 Grommet |
90480-15005-00 |
from US $1.84 |
||
|
20
|
20
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
