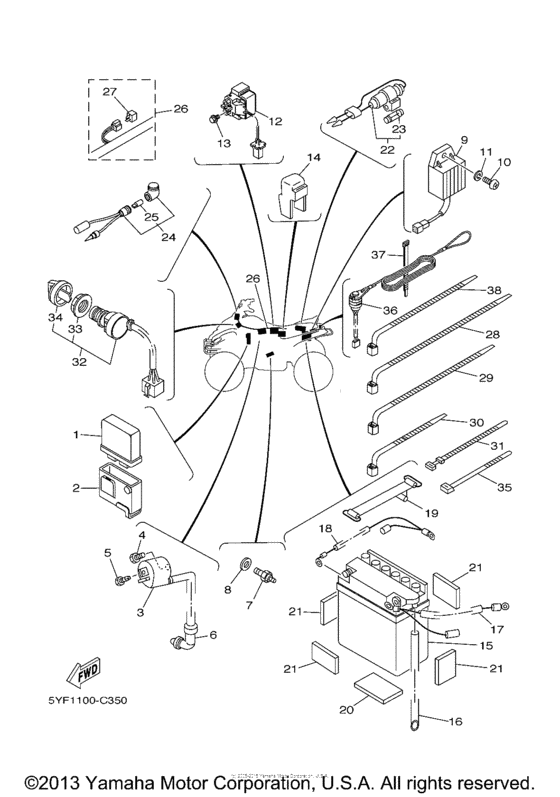

Electrical (1) Diagram Yamaha RAPTOR 50
- Model code
- YFM50S
- Engine Capacity
- 49
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Raptor 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5YF-85540-00-00 C.d.i. Unit Assy |
5YF-85540-00-00 |
from US $208.62 |
||
|
2
|
2
5CU-85546-00-00 Band |
5CU-85546-00-00 |
from US $29.33 |
||
|
3
|
3
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
3
|
3
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
3
|
3
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
3
|
3
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
4
|
4
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
5
|
5
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
6
|
6
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
6
|
6
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
|
6
|
6
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.76 |
||
|
7
|
7
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $20.25 |
||
|
8
|
8
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
9
|
9
5TH-81960-01-00 Rectifier & Regulator Assy |
5TH-81960-01-00 |
from US $119.78 |
||
|
10
|
10
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
3MW-81940-01-00 Starter Relay Assy (Ms5E-661) |
3MW-81940-01-00 |
from US $93.17 |
||
|
13
|
13
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
14
|
14
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
14
|
14
12R-81950-01-00 Relay Assy (12R-01)1RL-92 |
12R-81950-01-00 |
from US $57.75 |
||
|
14
|
14
12R-81950-02-00 RELAY ASSY1RL-92 |
12R-81950-02-00 |
from US $53.20 |
||
|
15
|
15
55X-82110-61-00
12N7-3B Gs Battery
GS BATTERY |
55X-82110-61-00 |
— | ||
| replacements | |||||
|
15
|
15
12N-73BG0-00-00
BLANK KEY 1215
GS BATTERY |
12N-73BG0-00-00 |
— | ||
|
15
|
15
12N-7D3B0-00-00 Bat 12N7D-3B (12N7D-3B) YuGS BATTERY |
12N-7D3B0-00-00 |
US $62.64 |
||
|
16
|
16
90445-085E0-00 Hose (L1500) |
90445-085E0-00 |
from US $10.91 |
||
| replacement | |||||
|
16
|
16
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
17
|
17
55X-82115-00-00 Wire, Plus Lead |
55X-82115-00-00 |
from US $19.40 |
||
| replacement | |||||
|
17
|
17
55X-82115-01-00 Wire, Plus Lead |
55X-82115-01-00 |
US $27.86 |
||
|
18
|
18
3GB-82116-00-00 Wire, Minus Lead |
3GB-82116-00-00 |
from US $17.50 |
||
|
19
|
19
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
20
|
20
55X-82122-00-00 Seat, Battery |
55X-82122-00-00 |
from US $3.82 |
||
|
21
|
21
29W-82123-00-00 Damper 1 |
29W-82123-00-00 |
from US $2.25 |
||
| replacement | |||||
|
21
|
21
1UY-21638-00-00 Damper 1 |
1UY-21638-00-00 |
from US $3.33 |
||
|
22
|
22
3GB-82150-00-00 Fuse Holder Assy |
3GB-82150-00-00 |
from US $28.05 |
||
|
23
|
23
3GB-82151-00-00 Fuse |
3GB-82151-00-00 |
from US $1.78 |
||
| replacement | |||||
|
23
|
23
5G2-82151-00-00 Fuse |
5G2-82151-00-00 |
from US $3.68 |
||
|
24
|
24
4KB-83530-00-00 Pilot Light Assy |
4KB-83530-00-00 |
from US $18.14 |
||
| replacement | |||||
|
24
|
24
4KB-83530-01-00 Pilot Light Assy |
4KB-83530-01-00 |
from US $13.80 |
||
|
25
|
25
5GH-83516-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 |
5GH-83516-00-00 |
from US $4.53 |
||
| replacement | |||||
|
25
|
25
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W T6.5 |
3FV-83517-00-00 |
from US $4.99 |
||
|
26
|
26
5YF-82590-00-00 Wire Harness Assy |
5YF-82590-00-00 |
US $187.49 |
||
|
27
|
27
3WP-81980-00-00 Diode Assy |
3WP-81980-00-00 |
from US $16.15 |
||
|
28
|
28
90460-15126-00 Clamp, Hose |
90460-15126-00 |
from US $1.56 |
||
|
29
|
29
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
30
|
30
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
30
|
30
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
31
|
31
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
32
|
32
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
| replacement | |||||
|
32
|
32
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
from US $65.24 |
||
|
33
|
33
3HN-82569-00-00 Nut, Main Switch |
3HN-82569-00-00 |
from US $2.98 |
||
|
34
|
34
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.74 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
36
|
36
5YF-82550-00-00 Engine Stop Switch Assy |
5YF-82550-00-00 |
from US $68.39 |
||
|
37
|
37
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
38
|
38
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
