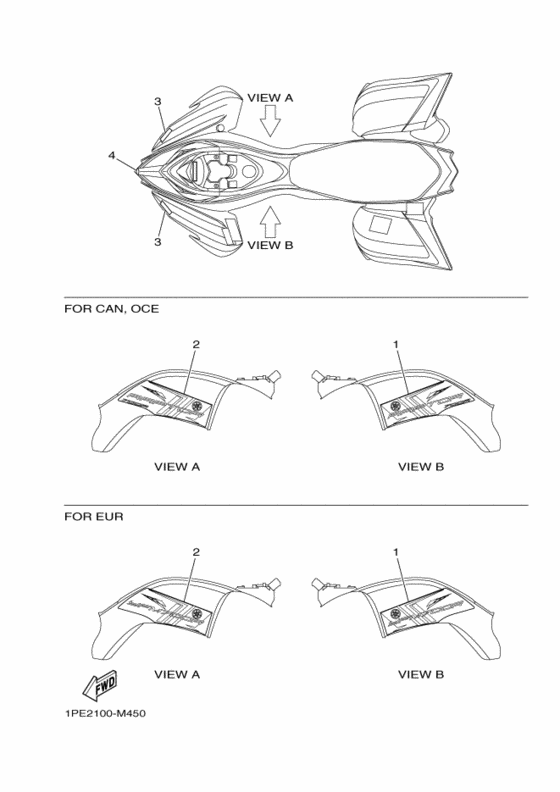

Graphics Diagram Yamaha RAPTOR 700 Raptor 700R
- Model code
- 1PE3
- Engine Capacity
- 686
- Year
- 2013
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- D
- Power
- 48 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Raptor 700R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1PE-F1571-10-00 Graphic, Front Fender 1 |
1PE-F1571-10-00 |
US $24.86 |
||
|
2
|
2
1PE-F1572-10-00 Graphic, Front Fender 2 |
1PE-F1572-10-00 |
US $24.86 |
||
|
3
|
3
3C2-F153E-20-00 Emblem, Yamaha |
3C2-F153E-20-00 |
US $1.10 |
||
| replacement | |||||
|
3
|
3
3C2-F153E-21-00 EMBLEM YAMAHA |
3C2-F153E-21-00 |
US $1.62 |
||
|
4
|
4
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $20.39 |
||
