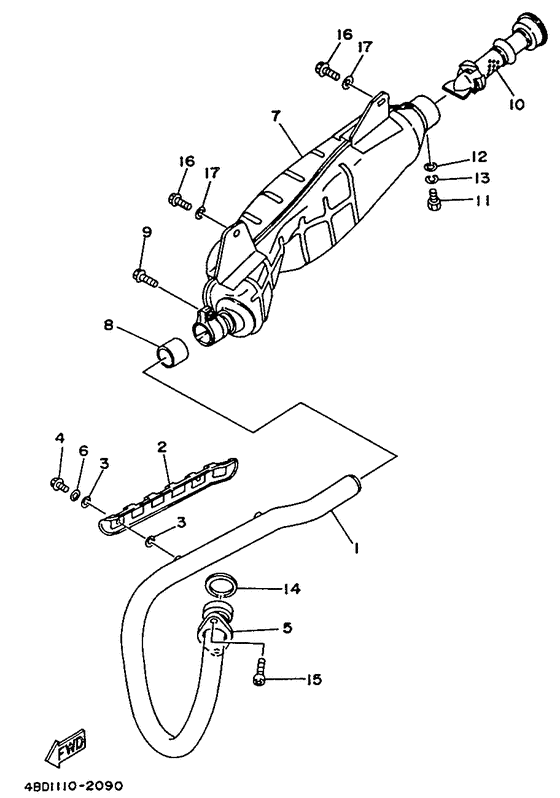

Exhaust Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- 4BD3
- Engine Capacity
- 229
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Solid Fine Silver (SFS; 000A)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4BD-14611-00-00
Pipe, Exhaust 1
|
4BD-14611-00-00 |
— | ||
|
02
|
02
3Y1-14628-00-00
Protector, Exhaust Pipe
|
3Y1-14628-00-00 |
— | ||
|
03
|
03
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
04
|
04
95026-06008-00 Bolt, Flange |
95026-06008-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
05
|
05
5H0-14612-00-00 Nut, Ring |
5H0-14612-00-00 |
from US $11.19 |
||
| replacement | |||||
|
05
|
05
5H0-14612-01-00 Nut, Ring |
5H0-14612-01-00 |
from US $11.19 |
||
|
06
|
06
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
07
|
07
4BD-14711-00-00 Muffler 1 |
4BD-14711-00-00 |
from US $420.05 |
||
| replacement | |||||
|
07
|
07
4BD-14711-01-00 Muffler 1 |
4BD-14711-01-00 |
from US $502.85 |
||
|
08
|
08
3YF-14714-00-00 Gasket, Muffler |
3YF-14714-00-00 |
from US $20.25 |
||
|
09
|
09
95026-08025-00 Bolt, Flange |
95026-08025-00 |
from US $1.56 |
||
| replacements | |||||
|
09
|
09
95027-08025-00 Bolt, Flange(4My) |
95027-08025-00 |
from US $1.56 |
||
|
09
|
09
99999-01790-00 Bolt, Flange (95026-08025-00) |
99999-01790-00 |
from US $2.49 |
||
|
10
|
10
21V-14752-00-00 Pipe, Outlet |
21V-14752-00-00 |
from US $85.38 |
||
|
11
|
11
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.70 |
||
|
15
|
15
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
16
|
16
958-21080-20-00
Bolt, Flange (95811-08020-00)
|
958-21080-20-00 |
— | ||
| replacement | |||||
|
16
|
16
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
17
|
17
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
17
|
17
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
