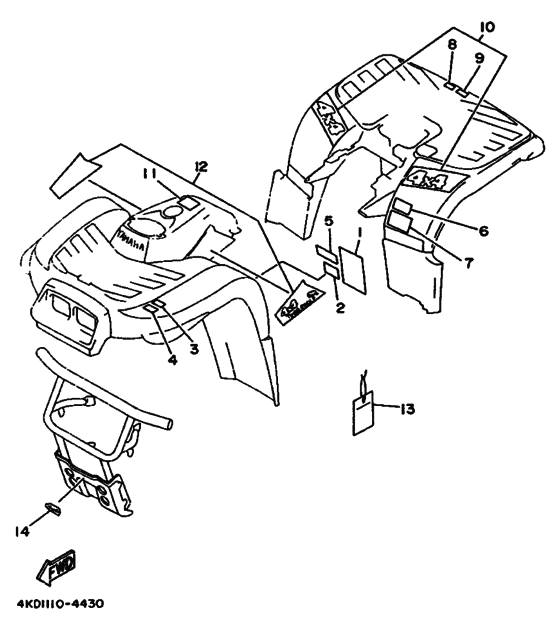

Emblem & label Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- 4KD5
- Engine Capacity
- 229
- Year
- 1995
- Sales region
- Europe (010)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JN-21568-00-00
Label, Warning
|
3JN-21568-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4WU-21568-00-00
Label, Warning
|
4WU-21568-00-00 |
— | ||
|
2
|
2
3JN-21578-00-00
Emblem (Shift Pattern)
|
3JN-21578-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3JN-21578-A0-00
Emblem
|
3JN-21578-A0-00 |
— | ||
|
3
|
3
3GX-24897-00-00
Emblem
|
3GX-24897-00-00 |
— | ||
|
4
|
4
3MX-24875-00-00
Label 1, Warning
|
3MX-24875-00-00 |
— | ||
|
5
|
5
3JN-2151E-00-00 Label 2 |
3JN-2151E-00-00 |
US $8.30 |
||
| replacement | |||||
|
5
|
5
3JN-2151E-A0-00
Label 2
|
3JN-2151E-A0-00 |
— | ||
|
6
|
6
3JN-2151H-00-00
Label 5
|
3JN-2151H-00-00 |
— | ||
| replacements | |||||
|
6
|
6
4WU-2151H-00-00
Label 5
|
4WU-2151H-00-00 |
— | ||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
4KD-21696-00-00
Label, Caution
|
4KD-21696-00-00 |
— | ||
|
8
|
8
3MX-24875-00-00
Label 1, Warning
|
3MX-24875-00-00 |
— | ||
|
9
|
9
3JN-24877-00-00 Label, Caution |
3JN-24877-00-00 |
US $18.02 |
||
|
10
|
10
4KD-2165A-00-00
Graphic Set, Rear Fender
UR FOR DNCS4 |
4KD-2165A-00-00 |
— | ||
|
10
|
10
4KD-2165A-20-00
Graphic Set, Rear Fender
UR FOR DNRS1 |
4KD-2165A-20-00 |
— | ||
|
11
|
11
3FA-2415A-00-00
Label, Caution 2
|
3FA-2415A-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3JM-21697-00-00
Label, Caution 2
|
3JM-21697-00-00 |
— | ||
|
12
|
12
4KD-2173G-00-00
Emblem Set 1
UR FOR DNCS4 |
4KD-2173G-00-00 |
— | ||
|
12
|
12
4KD-2173G-20-00
Emblem Set 1
UR FOR DNRS1 |
4KD-2173G-20-00 |
— | ||
|
13
|
13
3FA-2819R-00-00
Tag, Warning
|
3FA-2819R-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
4KD-2118E-00-00
Emblem 1
(FOR CANADA) |
4KD-2118E-00-00 |
— | ||
