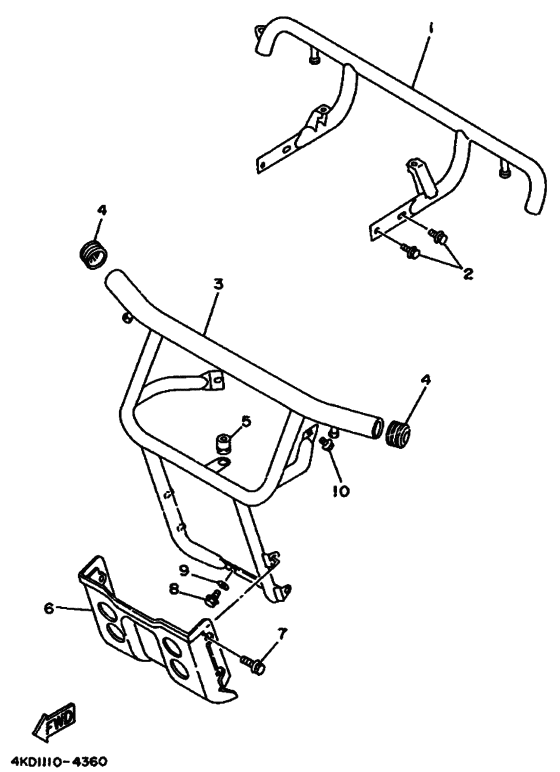

Guard Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- 4KD5
- Engine Capacity
- 229
- Year
- 1995
- Sales region
- Europe (010)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KD-2845R-00-00
Bar, Carry Rear
|
4KD-2845R-00-00 |
— | ||
|
2
|
2
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
4KD-2845N-00-00 Bar, Carry Front |
4KD-2845N-00-00 |
US $472.54 |
||
| replacement | |||||
|
3
|
3
4KD-2845N-10-00 Bar, Carry Front |
4KD-2845N-10-00 |
US $467.59 |
||
|
4
|
4
2HR-28415-00-00 Damper 1 |
2HR-28415-00-00 |
from US $7.65 |
||
|
5
|
5
90480-17507-00 Grommet |
90480-17507-00 |
US $7.88 |
||
|
6
|
6
4BD-2842M-00-00 Cover 1 |
4BD-2842M-00-00 |
US $137.25 |
||
|
7
|
7
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
7
|
7
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
8
|
8
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
8
|
8
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
9
|
9
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
9
|
9
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
10
|
10
958-27080-12-00 Bolt, Flange(FOR CANADA,OCEANIA,EUROPE |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange(FOR CANADA,OCEANIA,EUROPE |
95817-08012-00 |
from US $1.07 |
||
