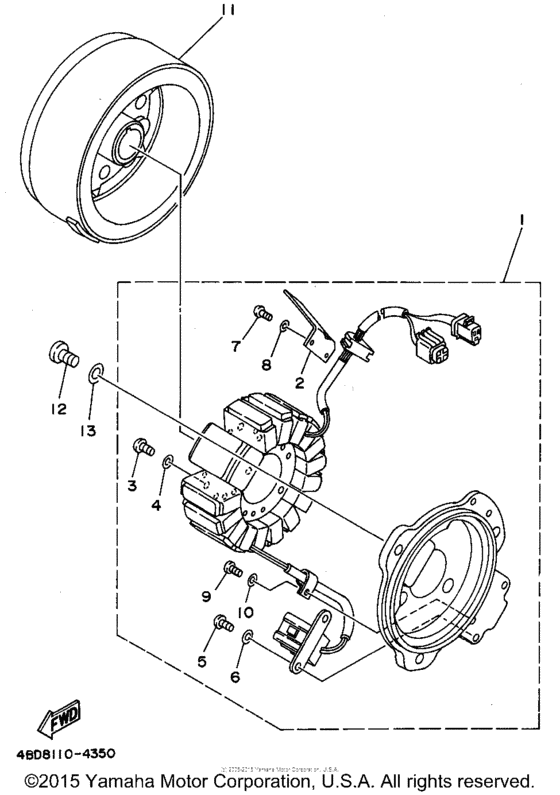

Generator Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- YFB250F
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-85510-20-00 Stator Assy |
4BD-85510-20-00 |
from US $720.78 |
||
|
2
|
2
21V-85525-00-00
Cover
|
21V-85525-00-00 |
— | ||
|
3
|
3
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
4
|
4
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
5
|
5
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
6
|
6
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
9
|
9
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
9
|
9
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
4BD-85550-20-00
Rotor Assy
|
4BD-85550-20-00 |
— | ||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
