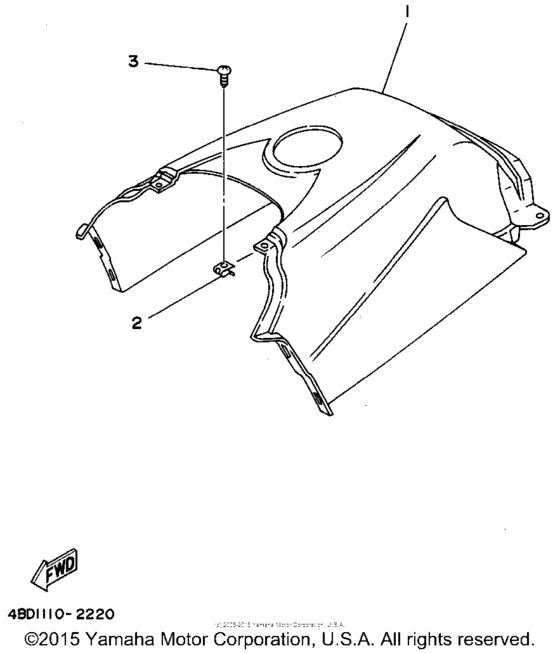

Side cover Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- YFB250F
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-2171A-40-00
Cover, Top
UR DULL PURPLISH BLUE SOLID 9 |
4BD-2171A-40-00 |
— | ||
|
1
|
1
4BD-2171A-50-00
Cover, Top
UR FIRE RED |
4BD-2171A-50-00 |
— | ||
| replacement | |||||
|
1
|
1
4BD-2171A-30-00
Cover, Top
UR FIRE RED |
4BD-2171A-30-00 |
— | ||
|
2
|
2
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
3
|
3
97706-50012-00 Screw, Truss Head Tapping |
97706-50012-00 |
from US $1.28 |
||
| replacement | |||||
|
3
|
3
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
