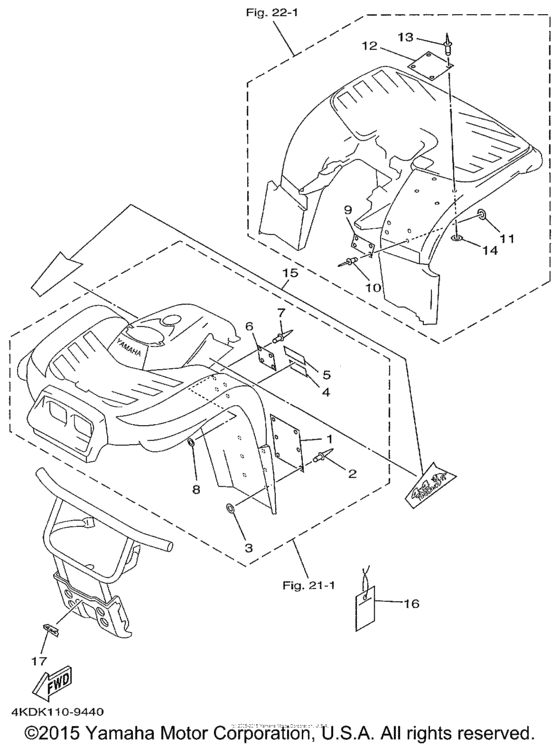

Emblem label Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- YFB250FWL
- Engine Capacity
- 229
- Year
- 1999
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FE-21568-00-00 Label, Warning |
5FE-21568-00-00 |
from US $41.17 |
||
| replacement | |||||
|
1
|
1
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
2
|
2
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
2
|
2
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
3
|
3
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
4
|
4
3JN-21578-00-00
Emblem (Shift Pattern)
|
3JN-21578-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3JN-21578-A0-00
Emblem
|
3JN-21578-A0-00 |
— | ||
|
5
|
5
3JN-2151E-00-00 Label 2ENGLISH |
3JN-2151E-00-00 |
US $8.30 |
||
| replacement | |||||
|
5
|
5
3JN-2151E-A0-00
Label 2
ENGLISH |
3JN-2151E-A0-00 |
— | ||
|
6
|
6
5FE-21697-00-00 Label, Warning Age |
5FE-21697-00-00 |
from US $22.24 |
||
| replacement | |||||
|
6
|
6
4D3-2816L-00-00 Label, Warning Age |
4D3-2816L-00-00 |
from US $19.54 |
||
|
7
|
7
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
7
|
7
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
8
|
8
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
9
|
9
5FE-2151H-00-00 Label 5 |
5FE-2151H-00-00 |
US $23.80 |
||
|
10
|
10
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
10
|
10
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
11
|
11
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
12
|
12
4KD-21696-40-00
Label, Caution
|
4KD-21696-40-00 |
— | ||
| replacement | |||||
|
12
|
12
4KD-21696-41-00
Label, Caution
|
4KD-21696-41-00 |
— | ||
|
13
|
13
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
13
|
13
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
14
|
14
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
15
|
15
4KD-2173G-70-00
Emblem Set 1
|
4KD-2173G-70-00 |
— | ||
|
16
|
16
3FA-2819R-00-00
Tag, Warning
|
3FA-2819R-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
4KD-2118E-00-00
Emblem 1
|
4KD-2118E-00-00 |
— | ||
