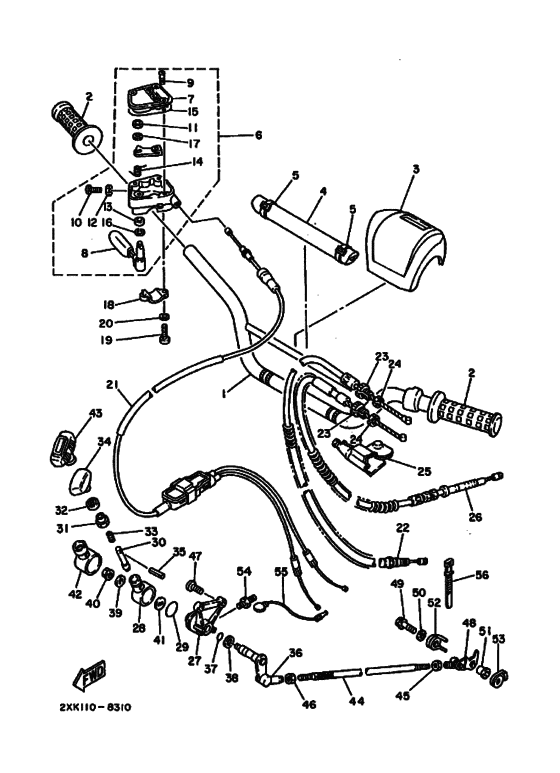

Steering handle & cable Diagram Yamaha WARRIOR 350
- Model code
- 2XK0
- Engine Capacity
- 348
- Year
- 1988
- Sales region
- Europe (020)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- B
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-26111-00-00 Handlebar |
1UY-26111-00-00 |
US $71.80 |
||
| replacement | |||||
|
1
|
1
1UY-26111-01-00 Handlebar |
1UY-26111-01-00 |
US $71.80 |
||
|
2
|
2
5V6-26241-01-00 Grip |
5V6-26241-01-00 |
from US $14.31 |
||
| replacement | |||||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
1UY-26124-00-00 Protector, Hdlbr |
1UY-26124-00-00 |
US $113.11 |
||
|
4
|
4
1UY-2622K-00-00
Protector 1
|
1UY-2622K-00-00 |
— | ||
|
5
|
5
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
6
|
6
1NV-26250-01-00 Throttle Lever Assy |
1NV-26250-01-00 |
from US $145.07 |
||
|
7
|
7
1NV-2628F-00-00 Cap, Gear |
1NV-2628F-00-00 |
US $38.48 |
||
|
8
|
8
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $43.76 |
||
|
9
|
9
98506-05012-00 Screw, Pan Head |
98506-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
9
|
9
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
9
|
9
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
10
|
10
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
11
|
11
95602-05100-00 Nut, U |
95602-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
12
|
12
95306-05700-00 Nut |
95306-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
13
|
13
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
14
|
14
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
15
|
15
1NV-2628G-00-00 Gasket |
1NV-2628G-00-00 |
from US $7.18 |
||
|
16
|
16
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
17
|
17
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
18
|
18
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
19
|
19
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
20
|
20
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
21
|
21
2XK-26260-00-00 Cable Assy, Throttle & Pump |
2XK-26260-00-00 |
US $161.89 |
||
| replacement | |||||
|
21
|
21
2XK-26301-00-00 Throttle Cable Assembly |
2XK-26301-00-00 |
US $161.89 |
||
|
22
|
22
1UY-26335-00-00 Cable, clutch |
1UY-26335-00-00 |
from US $34.14 |
||
|
23
|
23
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
23
|
23
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
24
|
24
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
24
|
24
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
25
|
25
1UY-2637A-00-00 Cover, Handle Lever 2 |
1UY-2637A-00-00 |
from US $18.99 |
||
| replacement | |||||
|
25
|
25
1UY-2637A-01-00 Cover, Handle Lever 2 |
1UY-2637A-01-00 |
from US $18.99 |
||
|
26
|
26
1UY-26341-01-00 Wire, Brake 1 |
1UY-26341-01-00 |
from US $36.70 |
||
| replacement | |||||
|
26
|
26
1UY-26341-10-00 Wire, Brake 1 |
1UY-26341-10-00 |
from US $41.86 |
||
|
27
|
27
2XK-26151-00-00 Body, Reverse Lever |
2XK-26151-00-00 |
US $45.90 |
||
| replacement | |||||
|
27
|
27
2XK-26151-10-00 Body, Reverse Lever |
2XK-26151-10-00 |
US $45.90 |
||
|
28
|
28
1UY-26152-00-00 Lever, Reverse |
1UY-26152-00-00 |
from US $33.78 |
||
|
29
|
29
93210-29147-00 O-Ring |
93210-29147-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
30
|
30
2XK-26154-00-00 Stopper, Lever |
2XK-26154-00-00 |
US $54.88 |
||
|
31
|
31
1UY-26161-00-00 Cover, Shift Spring |
1UY-26161-00-00 |
US $33.37 |
||
|
32
|
32
93109-08050-00 Oil Seal(1Uy) |
93109-08050-00 |
from US $7.93 |
||
| replacement | |||||
|
32
|
32
93109-08803-00 Oil Seal |
93109-08803-00 |
from US $7.93 |
||
|
33
|
33
90501-102E5-00 Spring, Compression |
90501-102E5-00 |
from US $2.55 |
||
|
34
|
34
1UY-26157-00-00 Lever, Lock |
1UY-26157-00-00 |
from US $3.26 |
||
|
35
|
35
91609-40016-00 Pin, Spring |
91609-40016-00 |
from US $1.84 |
||
| replacement | |||||
|
35
|
35
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
36
|
36
2XK-26162-00-00 Shaft, Link |
2XK-26162-00-00 |
US $52.63 |
||
| replacement | |||||
|
36
|
36
5YT-26162-00-00 Shaft, Link |
5YT-26162-00-00 |
US $52.63 |
||
|
37
|
37
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
38
|
38
90202-14037-00 Washer, Plate |
90202-14037-00 |
from US $1.90 |
||
|
39
|
39
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
40
|
40
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
40
|
40
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
41
|
41
1UY-26158-00-00 Plate, Side 1 |
1UY-26158-00-00 |
from US $2.05 |
||
|
42
|
42
1UY-26372-00-00 Cover, Handle Lever 1 |
1UY-26372-00-00 |
from US $8.08 |
||
|
43
|
43
1UY-26153-00-00 Grip, Lever |
1UY-26153-00-00 |
from US $5.38 |
||
|
44
|
44
1UY-26166-00-00
Rod, Joint (3Gd-26166-00-00)
|
1UY-26166-00-00 |
— | ||
|
45
|
45
95316-06700-00 Nut |
95316-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
45
|
45
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
46
|
46
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
47
|
47
92016-08020-00 Bolt, Button Head |
92016-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.18 |
||
|
48
|
48
2XK-26165-00-00 Lever 2 |
2XK-26165-00-00 |
from US $31.28 |
||
| replacement | |||||
|
48
|
48
5YT-26165-00-00 Lever 2 |
5YT-26165-00-00 |
from US $31.28 |
||
|
49
|
49
95812-06035-00 Bolt, Flange |
95812-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
49
|
49
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.02 |
||
|
50
|
50
90201-06068-00 Washer, Plate |
90201-06068-00 |
US $2.98 |
||
| replacement | |||||
|
50
|
50
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
51
|
51
90387-061F8-00 Collar |
90387-061F8-00 |
from US $4.68 |
||
|
52
|
52
1YW-18196-00-00 Spring, Return |
1YW-18196-00-00 |
from US $3.40 |
||
| replacement | |||||
|
52
|
52
90508-35764-00 Spring, Torsion |
90508-35764-00 |
from US $3.40 |
||
|
53
|
53
1YW-18198-00-00 Lever |
1YW-18198-00-00 |
from US $8.93 |
||
| replacement | |||||
|
53
|
53
4SH-18198-00-00 Lever |
4SH-18198-00-00 |
from US $8.93 |
||
|
54
|
54
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
54
|
54
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
55
|
55
2XK-82507-00-00 Wire, Lead |
2XK-82507-00-00 |
US $16.34 |
||
|
56
|
56
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
56
|
56
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
