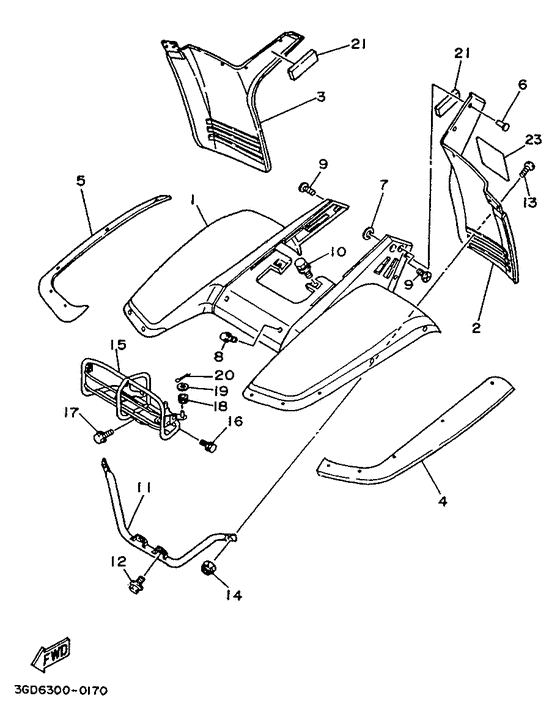

Fender carrier Diagram Yamaha WARRIOR 350
- Model code
- 3GDA
- Engine Capacity
- 348
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-21511-50-00 Fender, FrontPurplish white solid 1 |
3GD-21511-50-00 |
US $412.18 |
||
| replacements | |||||
|
01
|
01
3GD-W215D-52-00 Front FenderPurplish white solid 1 |
3GD-W215D-52-00 |
US $410.89 |
||
|
01
|
01
999-99999-99-00
Not Available
Purplish white solid 1 |
999-99999-99-00 |
— | ||
|
02
|
02
3GD-21521-10-00
Flap, Front Fender
Radical gray |
3GD-21521-10-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
Radical gray |
999-99999-99-00 |
— | ||
|
03
|
03
3GD-21561-10-00
Flap 2
Radical gray |
3GD-21561-10-00 |
— | ||
|
04
|
04
3GD-21551-10-00
Over, Fender
Radical gray |
3GD-21551-10-00 |
— | ||
|
05
|
05
3GD-21555-10-00
Over, Fender 2
Radical gray |
3GD-21555-10-00 |
— | ||
|
06
|
06
90267-48014-00 Rivet, Blind |
90267-48014-00 |
from US $1.66 |
||
|
07
|
07
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
07
|
07
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
07
|
07
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
08
|
08
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
08
|
08
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
09
|
09
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $2.02 |
||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
11
|
11
1UY-21513-00-00 Stay, Fender 1 |
1UY-21513-00-00 |
US $95.83 |
||
|
12
|
12
95821-06010-00 Bolt, Flange (10V) |
95821-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
12
|
12
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
13
|
13
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
3GD-23174-00-00 Stay, Headlight |
3GD-23174-00-00 |
US $263.32 |
||
| replacement | |||||
|
15
|
15
3GD-23174-10-00 Stay, Headlight (3Gd-23174-00-0 |
3GD-23174-10-00 |
US $245.34 |
||
|
16
|
16
95821-06010-00 Bolt, Flange (10V) |
95821-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
16
|
16
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
17
|
17
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
18
|
18
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
19
|
19
90201-06052-00 Washer, Plate (136-22316-00) |
90201-06052-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
20
|
20
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
20
|
20
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
21
|
21
1UY-21747-00-00 Damper 2 |
1UY-21747-00-00 |
from US $5.88 |
||
| replacement | |||||
|
21
|
21
3RW-21639-00-00 Damper 2 |
3RW-21639-00-00 |
US $9.76 |
||
