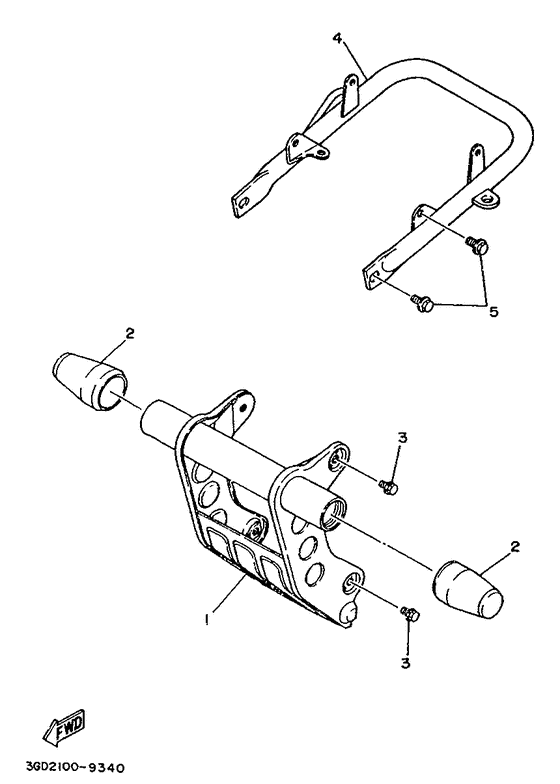

Guard Diagram Yamaha WARRIOR 350
- Model code
- 3GDA
- Engine Capacity
- 348
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GD-2845N-00-35
Bar, Carry Front
Silver |
3GD-2845N-00-35 |
— | ||
| replacement | |||||
|
01
|
01
3GD-2845N-00-P0 Bar, Carry FrontSilver |
3GD-2845N-00-P0 |
US $319.88 |
||
|
02
|
02
1UY-28415-00-00 Damper 1 |
1UY-28415-00-00 |
from US $8.76 |
||
|
03
|
03
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
04
|
04
3GD-2845R-10-00
Bar, Carry Rear
|
3GD-2845R-10-00 |
— | ||
|
05
|
05
95821-08016-00 Bolt, Flange (497) |
95821-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
05
|
05
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
05
|
05
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
