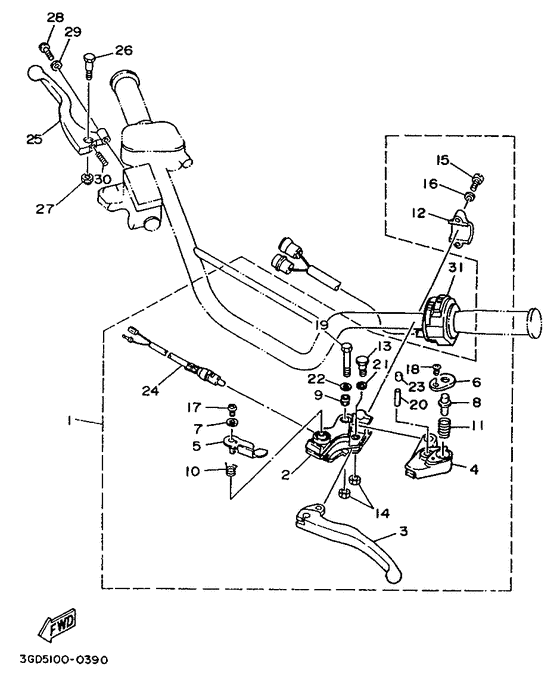

Handle switch & lever Diagram Yamaha WARRIOR 350
- Model code
- 3GDA
- Engine Capacity
- 348
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UY-82910-10-00
Lever Holder Assembly (Left)
|
1UY-82910-10-00 |
— | ||
| replacement | |||||
|
01
|
01
1UY-82910-11-00
Lever Holder Assembly (Left)
|
1UY-82910-11-00 |
— | ||
|
02
|
02
1UY-82911-01-00
Holder, Lever 1
|
1UY-82911-01-00 |
— | ||
| replacements | |||||
|
02
|
02
999-99029-90-00
Lever Holder 1
|
999-99029-90-00 |
— | ||
|
02
|
02
1UY-82911-02-00
Holder, Lever 1
|
1UY-82911-02-00 |
— | ||
|
03
|
03
1UY-83912-01-00 Lever 1 |
1UY-83912-01-00 |
from US $27.77 |
||
| replacement | |||||
|
03
|
03
1UY-83912-02-00 Lever 1 |
1UY-83912-02-00 |
from US $20.13 |
||
|
04
|
04
1UY-83922-01-00 Lever 2 |
1UY-83922-01-00 |
from US $20.13 |
||
|
05
|
05
1UY-83965-00-00
Lever, Lock
|
1UY-83965-00-00 |
— | ||
|
06
|
06
1UY-83935-00-00 Cover |
1UY-83935-00-00 |
from US $5.67 |
||
|
07
|
07
1UY-83909-00-00 Washer, Special |
1UY-83909-00-00 |
from US $2.27 |
||
|
08
|
08
1UY-83967-00-00 Pin, Lock 1 |
1UY-83967-00-00 |
US $17.12 |
||
|
09
|
09
1UY-83913-00-00 Collar, Lever 1 |
1UY-83913-00-00 |
from US $3.40 |
||
|
10
|
10
1UY-83966-00-00 Spring, Return |
1UY-83966-00-00 |
from US $5.38 |
||
|
11
|
11
1UY-83962-00-00 Spring |
1UY-83962-00-00 |
from US $1.98 |
||
|
12
|
12
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
13
|
13
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
13
|
13
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
16
|
16
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
17
|
17
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
17
|
17
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
18
|
18
985-06030-08-00
Screw, Pan Head
|
985-06030-08-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
19
|
19
97006-06040-00 Bolt(2Gu) |
97006-06040-00 |
from US $2.69 |
||
| replacement | |||||
|
19
|
19
97017-06040-00 Bolt(8Bc) |
97017-06040-00 |
from US $2.69 |
||
|
20
|
20
91690-40022-00 Pin, Spring |
91690-40022-00 |
from US $1.98 |
||
|
21
|
21
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
22
|
22
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
23
|
23
1UY-83956-00-00 Cap 1 |
1UY-83956-00-00 |
from US $4.53 |
||
|
24
|
24
1YW-83980-00-00 Front Stop Switch Assy |
1YW-83980-00-00 |
from US $60.38 |
||
|
25
|
25
1RX-83922-01-00 Lever 2 |
1RX-83922-01-00 |
from US $24.65 |
||
| replacement | |||||
|
25
|
25
1RX-83922-02-00 Lever 2 |
1RX-83922-02-00 |
from US $24.65 |
||
|
26
|
26
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
27
|
27
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
28
|
28
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
29
|
29
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
30
|
30
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
31
|
31
2HR-83973-01-00 Switch, Handle 3 |
2HR-83973-01-00 |
from US $125.37 |
||
| replacement | |||||
|
31
|
31
59V-83973-09-00 Switch, Handle 3 |
59V-83973-09-00 |
from US $134.82 |
||
