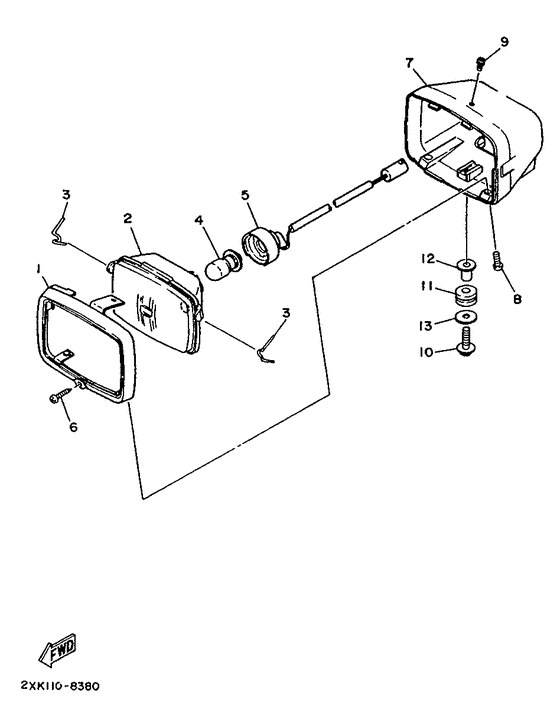

Headlight Diagram Yamaha WARRIOR 350
- Model code
- 3GDA
- Engine Capacity
- 348
- Year
- 1992
- Sales region
- Europe (General) (999)
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1UY-84315-00-00 Rim, Headlight |
1UY-84315-00-00 |
from US $90.91 |
||
|
02
|
02
59V-84320-00-00 Lens Assy |
59V-84320-00-00 |
from US $62.03 |
||
| replacement | |||||
|
02
|
02
59V-84320-01-00 Lens Assy |
59V-84320-01-00 |
from US $48.62 |
||
|
03
|
03
1UY-84124-00-00 Spring, Set |
1UY-84124-00-00 |
from US $3.12 |
||
|
04
|
04
102-84314-00-00 Bulb (12V-25/25W) |
102-84314-00-00 |
from US $5.38 |
||
| replacements | |||||
|
04
|
04
102-84314-00-XX Bulb (12V-25/25W) (102-84314- |
102-84314-00-XX |
US $6.35 |
||
|
04
|
04
1YT-84314-00-00 Bulb, Headlight (12V-25/25W) |
1YT-84314-00-00 |
from US $5.38 |
||
|
05
|
05
59V-84312-00-00
Socket
|
59V-84312-00-00 |
— | ||
| replacement | |||||
|
05
|
05
59V-84312-02-00
Socket
|
59V-84312-02-00 |
— | ||
|
06
|
06
97701-40525-00 Screw, Tapping |
97701-40525-00 |
from US $1.42 |
||
| replacements | |||||
|
06
|
06
97707-40625-00 Screw, Tapping |
97707-40625-00 |
from US $1.22 |
||
|
06
|
06
97780-40525-00 Screw, Tapping |
97780-40525-00 |
from US $1.13 |
||
|
07
|
07
3GD-84330-00-00
Body Assembly
Low gloss gray |
3GD-84330-00-00 |
— | ||
|
08
|
08
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
08
|
08
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
08
|
08
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
09
|
09
98506-04010-00 Screw, Pan Head |
98506-04010-00 |
from US $1.21 |
||
| replacement | |||||
|
09
|
09
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
10
|
10
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
10
|
10
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
10
|
10
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
11
|
11
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
12
|
12
90387-075U2-00 Collar |
90387-075U2-00 |
from US $4.91 |
||
|
13
|
13
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
