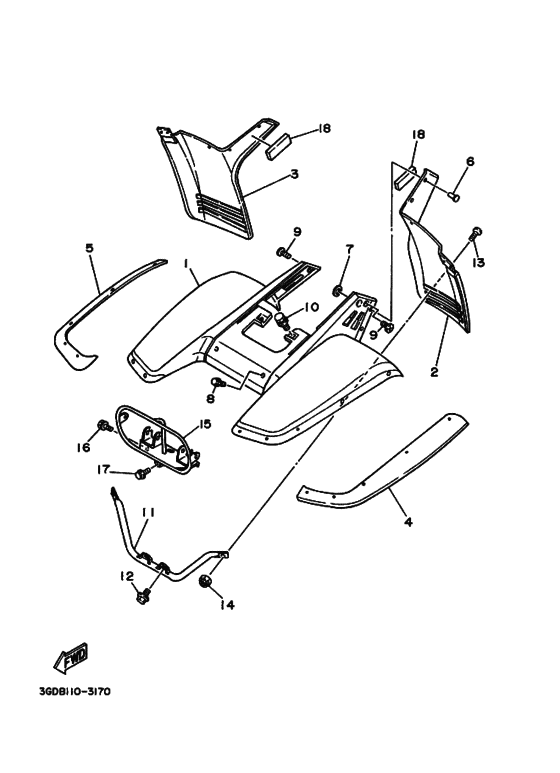

Fender Diagram Yamaha WARRIOR 350
- Model code
- 3GDC
- Engine Capacity
- 348
- Year
- 1993
- Sales region
- Europe (010)
- Colour
- Dull Purplish Blue Solid 9 (DPBS9; 0365)
- Color Variant
- A
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GD-21511-60-00
Fender, Front
DULL PURPLISH BLUE SOLID 9 |
3GD-21511-60-00 |
— | ||
| replacements | |||||
|
1
|
1
3GD-W215D-62-00
Front Fender
DULL PURPLISH BLUE SOLID 9 |
3GD-W215D-62-00 |
— | ||
|
1
|
1
999-99999-99-00
Not Available
DULL PURPLISH BLUE SOLID 9 |
999-99999-99-00 |
— | ||
|
1
|
1
3GD-W2151-60-00
New Genuine Part
DULL PURPLISH BLUE SOLID 9 |
3GD-W2151-60-00 |
— | ||
|
2
|
2
3GD-21521-00-00
Flap, Front Fender
|
3GD-21521-00-00 |
— | ||
|
3
|
3
3GD-21561-00-00
Flap 2
|
3GD-21561-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
3GD-21551-00-00 Fender, Over |
3GD-21551-00-00 |
US $62.64 |
||
|
5
|
5
3GD-21555-00-00 Fender, Over 2 |
3GD-21555-00-00 |
US $62.64 |
||
|
6
|
6
90267-48014-00 Rivet, Blind |
90267-48014-00 |
from US $1.66 |
||
|
7
|
7
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
7
|
7
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
7
|
7
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
8
|
8
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
8
|
8
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
9
|
9
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
9
|
9
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.39 |
||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
11
|
11
1UY-21513-00-00 Stay, Fender 1 |
1UY-21513-00-00 |
US $95.83 |
||
|
12
|
12
95821-06010-00 Bolt, Flange (10V) |
95821-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
12
|
12
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
13
|
13
90149-06184-00 Screw, Binding |
90149-06184-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90149-06306-00 Screw |
90149-06306-00 |
from US $2.50 |
||
|
14
|
14
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
3GD-23174-30-00
Stay, Headlight
|
3GD-23174-30-00 |
— | ||
|
16
|
16
95821-06010-00 Bolt, Flange (10V) |
95821-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
16
|
16
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
17
|
17
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
18
|
18
1UY-21747-00-00 Damper 2 |
1UY-21747-00-00 |
from US $5.88 |
||
| replacement | |||||
|
18
|
18
3RW-21639-00-00 Damper 2 |
3RW-21639-00-00 |
US $9.76 |
||
