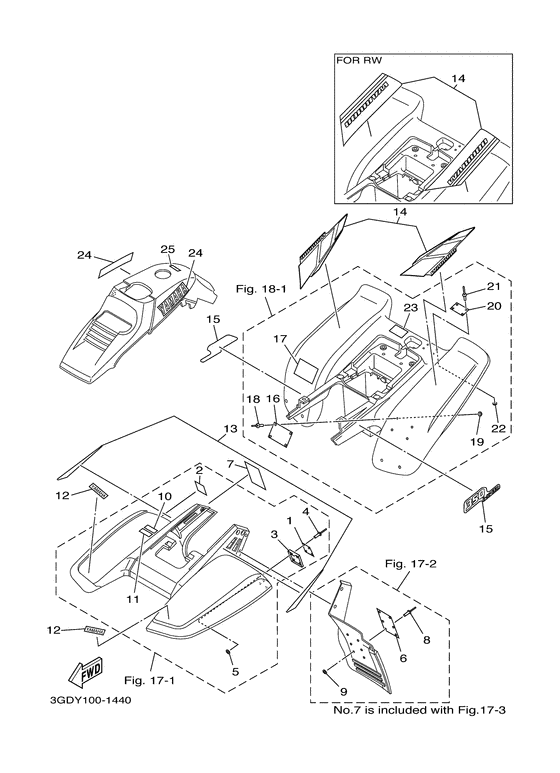

Emblem.label 2 Diagram Yamaha WARRIOR 350
- Model code
- 5NF2
- Engine Capacity
- 348
- Year
- 2001
- Sales region
- Canada (010)
- Colour
- Radical White (RW; 00UJ)
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5FE-21697-01-00
Label, Warning Age
|
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
01
|
01
4D3-2816L-00-00 Label, Warning Age |
4D3-2816L-00-00 |
from US $19.54 |
||
|
02
|
02
3JM-21697-10-00 Label, Caution 2French |
3JM-21697-10-00 |
US $16.15 |
||
| replacement | |||||
|
02
|
02
4D3-2816L-10-00 Label, Warning AgeFrench |
4D3-2816L-10-00 |
US $16.15 |
||
|
03
|
03
3JM-21591-00-00 Stay, Plate Fitting 2Ur rw |
3JM-21591-00-00 |
US $46.58 |
||
|
03
|
03
3JM-21591-10-00 Stay, Plate Fitting 2Ur dpbse |
3JM-21591-10-00 |
from US $19.27 |
||
|
04
|
04
90267-32198-00 Rivet, Blind |
90267-32198-00 |
from US $2.27 |
||
|
05
|
05
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
06
|
06
5FE-21568-01-00 Label, Warning |
5FE-21568-01-00 |
from US $43.52 |
||
|
07
|
07
4WU-21568-10-00 Label, WarningFrench |
4WU-21568-10-00 |
from US $19.84 |
||
|
08
|
08
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
08
|
08
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
09
|
09
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
10
|
10
3GD-2151E-A0-00
Label 2
|
3GD-2151E-A0-00 |
— | ||
|
11
|
11
3GD-2151E-B0-00
Label 2
|
3GD-2151E-B0-00 |
— | ||
|
12
|
12
3GD-2153E-00-00 Emblem, YamahaUr dpbse |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-01-00 EMBLEM YAMAHAUr dpbse |
3GD-2153E-01-00 |
from US $5.93 |
||
|
12
|
12
3GD-2153E-10-00 Emblem, YamahaUr rw |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
12
|
12
3GD-2153E-11-00 EMBLEM, YAMAHAUr rw |
3GD-2153E-11-00 |
from US $5.07 |
||
|
13
|
13
3GD-2157A-11-00
Graphic Set, Front Fender
For dpbse |
3GD-2157A-11-00 |
— | ||
|
14
|
14
3GD-2165B-11-00
Graphic Set,rear Fender
Ur dpbse |
3GD-2165B-11-00 |
— | ||
|
14
|
14
3GD-2165B-21-00
Graphic Set,rear Fender
Ur rw |
3GD-2165B-21-00 |
— | ||
|
15
|
15
3GD-21784-02-00
Emblem 4
Ur dpbse |
3GD-21784-02-00 |
— | ||
|
15
|
15
3GD-21784-12-00
Emblem 4
Ur rw |
3GD-21784-12-00 |
— | ||
|
16
|
16
3GD-21696-31-00
Label, Caution
|
3GD-21696-31-00 |
— | ||
|
17
|
17
3GD-21696-B0-00 Label, Caution |
3GD-21696-B0-00 |
US $19.98 |
||
|
18
|
18
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
18
|
18
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
19
|
19
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
20
|
20
5FE-2151H-01-00 Label 5 |
5FE-2151H-01-00 |
from US $23.80 |
||
|
21
|
21
902-67321-09-00
Rivet, Blind
|
902-67321-09-00 |
— | ||
| replacement | |||||
|
21
|
21
902-67320-03-00 Ybs34-46A Rivet |
902-67320-03-00 |
from US $2.69 |
||
|
22
|
22
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
23
|
23
4WU-2151H-10-00 Label 5French |
4WU-2151H-10-00 |
US $12.04 |
||
|
24
|
24
99241-00200-00 Emblem, YamahaUr dpbse |
99241-00200-00 |
from US $11.05 |
||
|
24
|
24
99246-00200-00 Emblem, YamahaUr rw |
99246-00200-00 |
from US $9.78 |
||
|
25
|
25
4SH-2416E-00-00
Label, Caution Canada
|
4SH-2416E-00-00 |
— | ||
