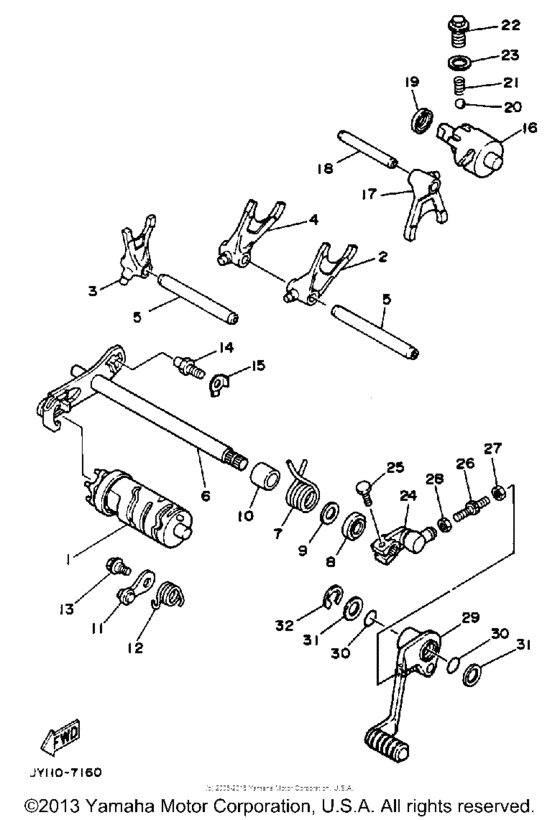

Shift Cam & Fork Diagram Yamaha WARRIOR 350
- Model code
- YFM350XT
- Engine Capacity
- 348
- Year
- 1987
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-18540-00-00 Shift Cam Assy |
1UY-18540-00-00 |
from US $112.77 |
||
| replacement | |||||
|
1
|
1
5YT-18540-00-00 Shift Cam Assy |
5YT-18540-00-00 |
from US $112.77 |
||
|
2
|
2
1YW-18511-00-00 Fork, Shift 1 |
1YW-18511-00-00 |
from US $35.37 |
||
|
3
|
3
1UY-18512-00-00 Fork, Shift 2 |
1UY-18512-00-00 |
from US $35.92 |
||
| replacement | |||||
|
3
|
3
4GB-18512-00-00 Fork, Shift 2 |
4GB-18512-00-00 |
from US $35.92 |
||
|
4
|
4
1UY-18513-00-00 Fork, Shift 3 |
1UY-18513-00-00 |
from US $42.14 |
||
|
5
|
5
1UY-18531-00-00 Bar, Shift Fork Guide 1 |
1UY-18531-00-00 |
from US $10.13 |
||
|
6
|
6
1UY-18101-00-00 Shift Shaft Assy |
1UY-18101-00-00 |
from US $86.67 |
||
| replacement | |||||
|
6
|
6
1UY-18101-02-00 SHIFT SHAFT ASSY |
1UY-18101-02-00 |
from US $83.61 |
||
|
7
|
7
90508-32711-00 Spring, Torsion |
90508-32711-00 |
from US $4.82 |
||
|
8
|
8
93102-14209-00 Oil Seal |
93102-14209-00 |
from US $3.72 |
||
|
9
|
9
90201-144J2-00 Washer, Plate |
90201-144J2-00 |
from US $1.84 |
||
|
10
|
10
90560-14284-00 Spacer |
90560-14284-00 |
from US $9.63 |
||
|
11
|
11
1UY-18140-00-00 Stopper Lever Assy |
1UY-18140-00-00 |
from US $5.81 |
||
|
12
|
12
90508-25712-00 Spring, Torsion |
90508-25712-00 |
from US $2.83 |
||
|
13
|
13
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
13
|
13
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
|
14
|
14
4G0-18127-00-00 Stopper, Screw |
4G0-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
14
|
14
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
15
|
15
90215-08260-00 Washer, Lock(1Uy) |
90215-08260-00 |
from US $2.13 |
||
|
16
|
16
1UY-18546-00-00
Cam, Shift 2
|
1UY-18546-00-00 |
— | ||
|
17
|
17
1UY-18311-00-00 Fork, Shift 1 |
1UY-18311-00-00 |
from US $40.62 |
||
|
18
|
18
2A6-18531-00-00 Bar, Shift Fork Guide 1 |
2A6-18531-00-00 |
from US $18.99 |
||
|
19
|
19
931-02152-12-00 Oil Seal |
931-02152-12-00 |
from US $4.49 |
||
|
20
|
20
935-03080-07-00 Ball |
935-03080-07-00 |
from US $1.94 |
||
|
21
|
21
90501-147A6-00 Spring, Compression |
90501-147A6-00 |
from US $2.55 |
||
|
22
|
22
90105-14367-00 Bolt, Flange |
90105-14367-00 |
from US $4.82 |
||
|
23
|
23
90430-14194-00 Gasket |
90430-14194-00 |
from US $1.81 |
||
|
24
|
24
1UY-18112-01-00 Arm, Shift |
1UY-18112-01-00 |
from US $43.43 |
||
| replacement | |||||
|
24
|
24
1UY-18112-10-00 Arm, Shift |
1UY-18112-10-00 |
from US $52.60 |
||
|
25
|
25
958-26060-20-00
Bolt, Flange
|
958-26060-20-00 |
— | ||
| replacement | |||||
|
25
|
25
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
26
|
26
4K0-18115-00-00 Rod, Shift |
4K0-18115-00-00 |
from US $12.89 |
||
| replacement | |||||
|
26
|
26
2XK-18115-00-00 Rod, Shift |
2XK-18115-00-00 |
from US $12.89 |
||
|
27
|
27
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
28
|
28
95316-06700-00 Nut |
95316-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
28
|
28
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
29
|
29
1UY-18110-00-00 Shift Pedal Assy |
1UY-18110-00-00 |
from US $74.61 |
||
|
30
|
30
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
31
|
31
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $2.08 |
||
|
32
|
32
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.84 |
||
