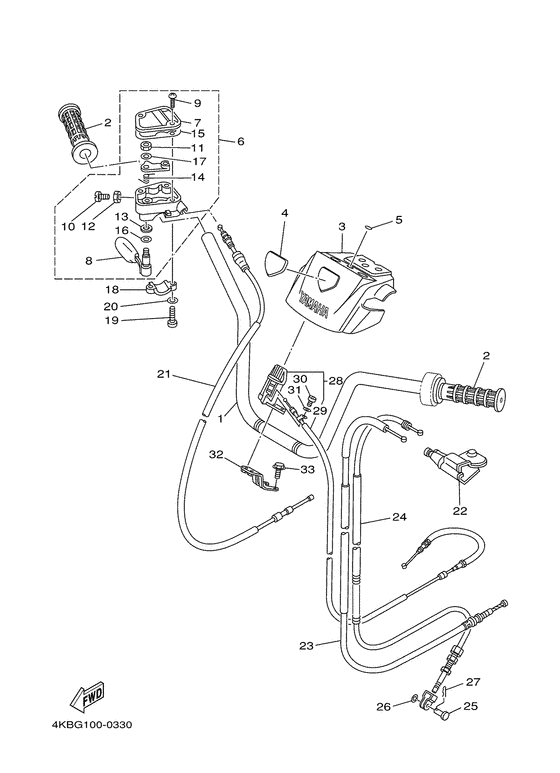

Steering handle & cable Diagram Yamaha WOLVERINE 350 Wolverine 350 4WD
- Model code
- 4KBK
- Engine Capacity
- 348
- Year
- 2000
- Sales region
- England (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Wolverine 350 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2HR-26111-00-00 Handlebar |
2HR-26111-00-00 |
from US $47.75 |
||
|
02
|
02
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
03
|
03
5FE-26124-11-00 Protector, Handlebar |
5FE-26124-11-00 |
from US $23.80 |
||
|
04
|
04
4KB-26232-10-00 Emblem 3D |
4KB-26232-10-00 |
US $24.75 |
||
|
05
|
05
5GT-2836B-00-00 Tuning Fork Mark |
5GT-2836B-00-00 |
from US $11.33 |
||
| replacement | |||||
|
05
|
05
5GT-2836B-10-00 Tuning Fork Mark |
5GT-2836B-10-00 |
from US $11.33 |
||
|
06
|
06
4KB-26250-00-00
Throttle Lever Assy
|
4KB-26250-00-00 |
— | ||
| replacements | |||||
|
06
|
06
4KB-26250-11-00 Throttle Lever Assy |
4KB-26250-11-00 |
from US $103.48 |
||
|
06
|
06
4KB-26250-12-00 Throttle Lever Assy |
4KB-26250-12-00 |
US $142.54 |
||
|
07
|
07
4KB-2628F-00-00 Cap, Gear |
4KB-2628F-00-00 |
from US $19.09 |
||
|
08
|
08
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $43.76 |
||
|
09
|
09
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
10
|
10
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
11
|
11
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
12
|
12
95307-05700-00 Nut |
95307-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
13
|
13
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
14
|
14
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
15
|
15
4KB-2628G-00-00 Gasket |
4KB-2628G-00-00 |
from US $5.93 |
||
|
16
|
16
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
17
|
17
1NV-26398-00-00
Washer, Special
|
1NV-26398-00-00 |
— | ||
| replacement | |||||
|
17
|
17
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
18
|
18
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
19
|
19
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
20
|
20
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
21
|
21
4KB-26311-11-00 Cable, Throttle 1 |
4KB-26311-11-00 |
US $64.66 |
||
|
22
|
22
1UY-2637A-01-00 Cover, Handle Lever 2 |
1UY-2637A-01-00 |
from US $18.99 |
||
|
23
|
23
4KB-26341-00-00 Cable, Brake |
4KB-26341-00-00 |
from US $47.52 |
||
| replacement | |||||
|
23
|
23
4KB-26341-10-00 Cable, Brake |
4KB-26341-10-00 |
from US $58.45 |
||
|
24
|
24
4KB-26351-00-00 Cable, Brake |
4KB-26351-00-00 |
from US $82.26 |
||
| replacement | |||||
|
24
|
24
4KB-26351-01-00 Cable, Brake |
4KB-26351-01-00 |
from US $116.75 |
||
|
25
|
25
90240-06076-00 Pin, Clevis |
90240-06076-00 |
from US $1.70 |
||
|
26
|
26
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
27
|
27
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
27
|
27
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
27
|
27
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
28
|
28
4KB-26150-01-00 Rev. Lever Assy |
4KB-26150-01-00 |
from US $115.96 |
||
| replacement | |||||
|
28
|
28
4KB-26150-10-00 Rev. Lever Assy |
4KB-26150-10-00 |
from US $132.08 |
||
|
29
|
29
4KB-2637E-02-00 Cable, Control 1 |
4KB-2637E-02-00 |
from US $43.36 |
||
|
30
|
30
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
31
|
31
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
32
|
32
4KB-2612E-00-00 Bracket |
4KB-2612E-00-00 |
from US $15.10 |
||
|
33
|
33
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
